Small-Forcer Linear Servo Motor for High-Density Applications

The SS series motors are available in 25, 32 and 35mm shaft diameter sizes, and with single, double, triple and quadruple winding options.

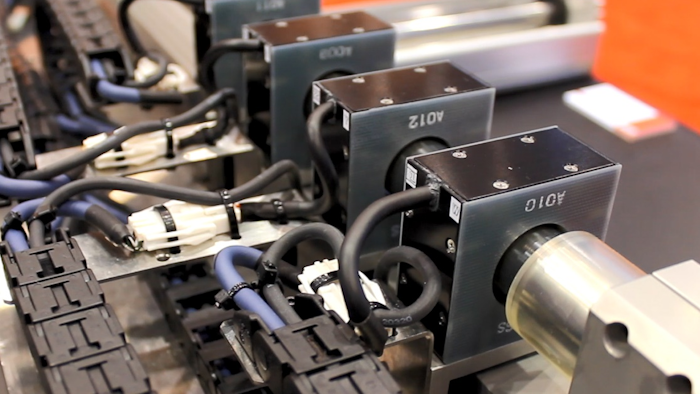

Nippon Pulse 58d1505c83b50

Nippon Pulse America Inc. (Radford, VA) has introduced one of the smallest available linear motors for high-density applications, the L250SSS Linear Shaft Motor. It is a 25mm diameter linear servo motor with a single winding and the company’s smallest available forcer – only 30mm in length, and with higher force than competing off-the-shelf motors. Its maximum usable stroke reaches to more than two meters in length.

The L250SSS motor is part of Nippon Pulse’s existing SS series of Linear Shaft Motors, which features small forcers and stack-lengths for high-density applications. The SS series motors are available in 25, 32 and 35mm shaft diameter sizes, and with single, double, triple and quadruple winding options. Both the L250SSS and the other motors in the SS series are ideal for life sciences and industrial applications in which multiple forcers are required to travel along a single shaft.

Nippon Pulse has the largest selection of linear motor products available, with more than 10,000 standard configurations, and custom designs available.

www.nipponpulse.com; 540-633-1677
