Electric Linear Rod Actuator Improves Efficiency, Accuracy

The new hydraulic-class electric linear rod actuator product line will be capable of 50,000 lbf/222.5 kN or higher.

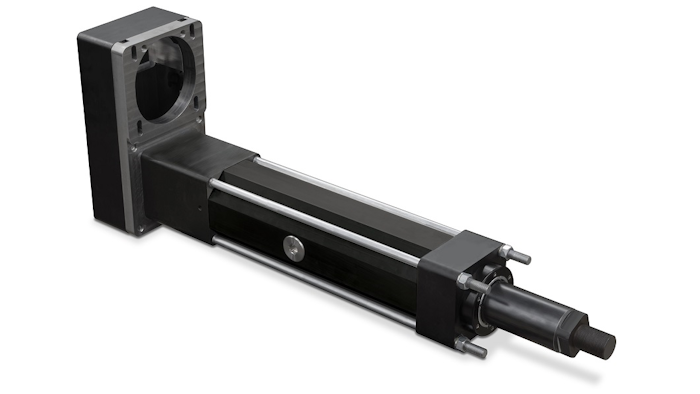

Tolomatic’s new RSX hydraulic-class electric linear rod actuator.
Tolomatic’s new RSX hydraulic-class electric linear rod actuator.
Tolomatic

Tolomatic’s (Hamel, MN) new RSX hydraulic-class electric linear rod actuator meets the need for extreme forces and is suitable for replacing hydraulic cylinders. Designed and tested for 100% duty cycle, the actuator’s roller-screw drive ensures long, consistent life. Additional features include:

  • Applicability in pressing, punching, stamping; riveting, fastening, joining; injection molding; and sawmilling.
  • A capability of 50,000 lbf/222.5 kN or higher — the RSX-096 (initial offering) is capable of 30,000 lbf.
  • A heavy-duty construction that includes tie-rods and Type III hardcoat anodized aluminum or zinc-plated steel.
  • A standard anti-rotate feature that prevents the rod from rotating without external guidance.
  • Rated IP67 for resistance to water from a light washdown and dust from outdoor environments. Rated for extreme conditions including cold-weather operation.
  • The ability to add servo motors and gearboxes up to 215mm frame size.
  • An access port for re-lubrication.
  • A breather/purge port to prevent ingress into the actuator.

For more information, visit www.tolomatic.com; or call 800-328-2174.
