H2W Technologies offers miniature versions of moving coil and moving magnet voice coil actuators.
H2W Technologies

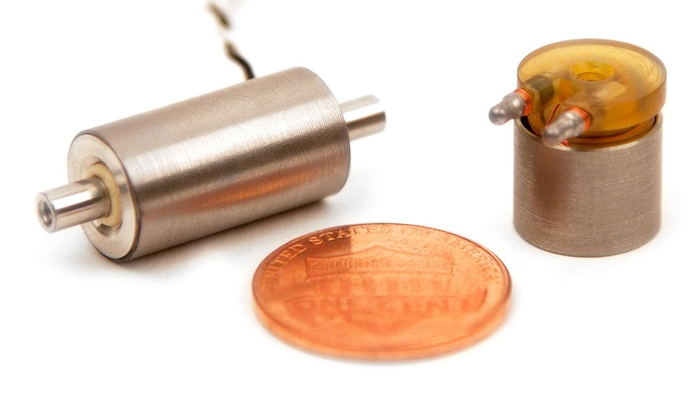

H2W Technologies (Santa Clarita, CA) now offers miniature versions of both its moving coil and moving magnet voice coil actuators.
The moving magnet voice coil actuator (NCM01-04-001-2IB) features:
- An outside diameter of 0.40” (10 mm).
- A length of 0.735” in (18.8 mm).
- A stroke of 0.10” (2.5 mm).
- A continuous force of 0.10 lbs (0.45 N).
- A peak force of 0.30 lbs (1.35 N).
- A weight of 0.20 ounces (5.7 grams).
- A hardened shaft and sliding contact bushing to ensure long life, and is ideal for oscillatory motion.
- Built-in bearings.
- No moving leads.
The small moving coil voice coil actuator (NCC01-04-001-1X) features:
- An outside diameter of 0.44” (11.1 mm).
- A length of 0.36” (9 mm).
- A stroke of 0.13” (3.2 mm).
- A continuous force of 0.06 lbs (0.27 N).
- A peak force of 0.18 lbs (0.8 N).
- A weight of 0.20 ounces (5.7 grams).
- A bobbin constructed of plastic to prevent any damping forces that a metallic bobbin would create.
- Available custom designed solutions.
For more information, visit http://www.h2wtech.com; or call 888-702-0540.
