3-Axis Gimbal Mount Has 360° Rotation on Each Axis

It's rigid black anodized aluminum alloy frame can handle loads to 10 kg (22.5 lbs).

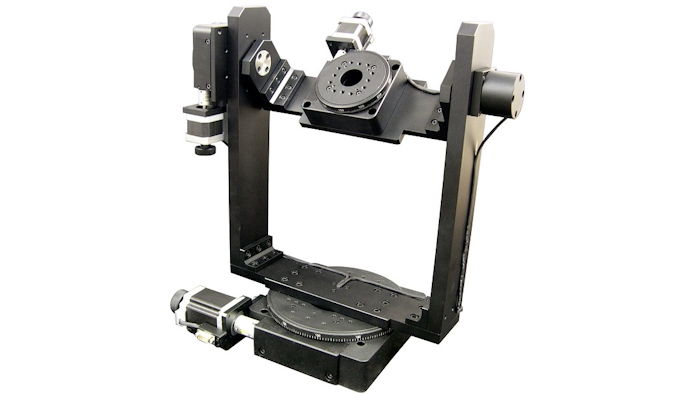

The AU300-XZ Motorized 3-axis Gimbal Mount from Optimal Engineering Systems (OES).
The AU300-XZ Motorized 3-axis Gimbal Mount from Optimal Engineering Systems (OES).
OES

The AU300-XZ Motorized 3-axis Gimbal Mount from Optimal Engineering Systems (OES) (Van Nuys, CA) features full 360° rotation of each axis. Additional features include:

  • A rigid black anodized aluminum alloy frame that can handle loads to 10 kg (22.5 lbs).
  • Clearance (300 mm x 300 mm, 11.8” x 11.8”) necessary for mounting lasers, cameras, optics, and instrumentation for pointing, scanning, tracking, and positioning.
  • An Azimuth stage rotary table that has a 214 mm x 214 mm (8.425” x 8.425”) footprint.
  • Bi-directional stepper motors capable of microstepping.
  • Knobs for manual adjustments.
  • Low backlash worm gear drives and precision "V" grove and cross roller bearings on each axis for a resolution of 3.6 arc seconds.
  • Repeatability and positional accuracy to 18 arc seconds.
  • Travel speed of each axis is 10 O per second.
  • Availability as a plug-and-play system with a multi-axis controller, joy stick, track ball, or keypad, and a 30 mm thru hole in the roll stage.

For more information, visit http://www.oesincorp.com; or call 888-777-1826.
