Integrated Stepper Motors with Industrial Ethernet, Profinet

The steppers feature 409,600 steps per revolution (4,096 microsteps per step) for smooth and quiet operation.

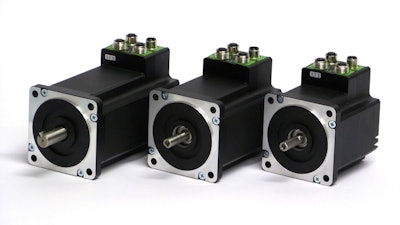

Jvl 56cde1a1592e1
JVL

JVL (Morrow, OH) has added Profinet Industrial Ethernet capabilities to its NEMA 34 Series of integrated steppers with programmable controllers. Available in 4 torque ratings of 3 Nm (26.6 in-lb), 6 Nm (53.1 in-lb), 9 Nm (79.7 in-lb), and 12 Nm (106.2 in-lb), the compact integrated steppers, include all necessary electronics within the IP67 rated motor housing.

The quiet, precision MIS340 Series steppers feature:

  • Suitability in industrial, medical, inspection, testing, and processing applications.
  • Expanded ethernet protocols that connect to Ethernet bus systems, such as EtherCAT, Ethernet I/P, Powelink, ModbusTCP, Sercos III, and Profinet.
  • Availability with Bluetooth, ZigBee, WLAN, PLC, RS485, and CANbus.
  • Availability with a separate SMC85 controller.
  • Optional electronic gearing, 9.53 mm (0.375 in.) or 14 mm (0.551 in.) diameter shafts, absolute multi-turn encoder, and planetary gear heads.

The steppers feature 409,600 steps per revolution (4,096 microsteps per step) for smooth and quiet operation. The integrated PLC features:

  • 8 I/Os
  • RS-422 and RS485 connections for encoders.
  • Point-to-point or multi axes operations to 254 axes.

The 12-80 VDC supply provides high torque (0-9 A RMS (12.6 A peak) at high speed, and the control 12 to 28 VDC can maintain position value in emergency situations.

For further information, visit www.jvl.dk.
