Amphenol Industrial Operations Expands its SurLok Plus Series

The series is tailored to meet the evolving needs of the energy storage and electric vehicle markets.

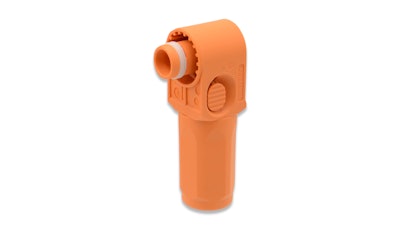

SurLok Plus 1500V Plug
SurLok Plus 1500V Plug
Amphenol

Amphenol Industrial Operations, a global leader in interconnect systems, now offers its SurLok Plus series in varying connector sizes and configurations. The SurLok Plus 10.3mm inline plug 2.0 generation, SurLok Plus 5.7mm and 8.0mm 2.5 generation and the SurLok Plus 14.0mm EMI can be used to meet energy storage requirements and high-power connections as well as transfers in the energy storage and electronic vehicle market.

Although some specifications are the same across this family of products, each version of these high current cabling systems offers features that make them different and unique from one another.

SurLok Plus 10.3mm inline plug 2.0 generation

Designed to meet the needs of the 1500VDC market connection demand, Amphenol’s 10.3mm inline plug 2.0 generation non-EMI straight plug connector features a quick connect and locking system. It is ideal for applications using battery and control boxes that require a 360A power connector, as well as in electric vehicles, hybrid electric and/or EV within the heavy equipment market. This connector is a reliable alternative to compression lugs.

SurLok Plus 5.7mm and 8.0mm 2.5 generation

Amphenol’s SurLok Plus 5.7mm (1000VDC) rated to 120A and 8.0mm (1500VDC) rated to 200A 2.5 generation, non-EMI right angle connectors are designed for high power application connections in the energy storage market. These connectors feature ‘3 anti and 1 rotation’, including anti-mis-insertion (Pokayoke), anti-incorrect installation, antiwater and a 360° rotation after mating.

SurLok Plus 14.0mm EMI

The powerful SurLok Plus 14.0mm EMI right angle connector, with a voltage range of 1500VDC, providing EMI shielding and HVIL option, temperature range -40°C - 140°C is ideal for use not only in the energy storage market, but also in electric vehicle, battery solutions, fuel cell and industrial applications. This field-installable connector is environmentally friendly and a reliable alternative to common compression lugs. It can be used in DC/DC and AC/DC power transfers. The SurLok Plus 14.0mm features EMI shielding.

Easy to mate and unmate

latest R4 RADSOK technology that significantly increases amperage, while reducing insertion force, temperature rise and voltage drop. SurLok Plus connectors feature a self-cleaning grid that cleans contacts and connectors. They are environmentally sealed and are rated IP67, UL4128/TUV 2PfG2740.

Technical Specifications include:

 • EMI shielding and non-EMI shielding

 • Straight and right angle connectors

 • 1500VDC for high voltage applications

 • Features RADSOK technology

 • Quick lock and release design

For more information, visit amphenol-industrial.com.
