Miniature Linear Voice Coil Motor

Sharing the same physical dimensions, each is just 1.000 in. (25.4 mm) in diameter and the housings are 1.500 in. (38.1 mm) long.

Moticont

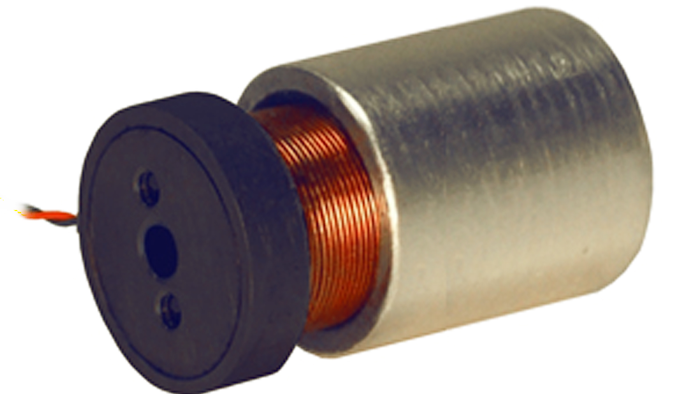

Moticont (Van Nuys, CA) has added two miniature linear voice coil motors to its LVCM family of Linear Voice Coil Motors. Sharing the same physical dimensions, each is just 1.000 in. (25.4 mm) in diameter and the housings are 1.500 in. (38.1 mm) long.  As every application is different, Moticont offers two motors in the LVCM-025 Series of Voice Coil Motors. The LVCM-025-038-01 features a continuous force of 2.5 lbs (11.0 N) and a peak force of 7.8 lbs (34.7 N) and the LVCM-025-038-02 features a 1.000 in (25.4 mm) stroke, whereas, the LVCM-025-038-01 features a stroke of 0.37 in.  (9.5 mm ) and the LVCM-025-038-02 features a continuous force of 16.4 oz (4.6 N) and a peak force of 51.9 oz (14.4 N).

Whether it is a longer stroke or a higher force that is required for an application, each of these highly efficient, clean, miniature brushless DC servo motors has high acceleration / deceleration, low inertia, and zero cogging.

www.moticont.com; 888-785-1804
