AquaPruf Ultimate Conveyor Platform Earns 3-A Certification

It has met the requirements of the 3-A sanitary standard in the design and fabrication of equipment used in food processing.

Dorner

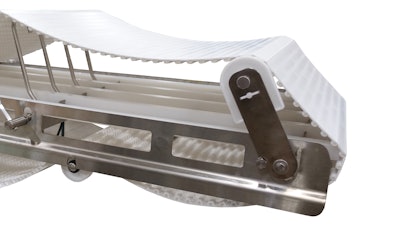

The AquaPruf Ultimate conveyor from Dorner (Hartland, WI) is now 3-A certified. Evaluating equipment for 3-A certification is performed by an objective, independent third-party verification inspection to ensure that the AquaPruf Ultimate conveyor has successfully met the requirements of the 3-A sanitary standard in the design and fabrication of equipment used in food processing.

Helping to achieve 3-A certification were recent updates to the platform to incorporate the latest engineering designs to provide the highest level of sanitary standards, and the fastest cleaning times, for applications such as meat, poultry, fish and ready-to-eat.

Dorner’s AquaPruf Ultimate conveyor comes with several industry-leading sanitary features, including:

  • All internal frame components, except belted product, are polished to 32 micro-inches (1 micro-inch equals one-millionth of an inch)

  • All bearings are external to the conveyor and a minimum of 25 mm away from the food zone

  • Drive sprocket design includes a quick cleaning system to ensure cleaning can be done below the sprocket surface

  • Patent-pending idler tail cleaning system on modular belt and positive drive belt models

  • Belting and chain meet 3-A certification, as well as USDA and NSF requirements

  • Sanitary threadless feet design for all support stands

  • Radii on all internal components meet the 6 mm (0.25”) standard requirement

AquaPruf Ultimate conveyors are available in straight modular flat belt, straight modular cleated belt, positive belt end drive, and LPZ belt models. Additional features and benefits of AquaPruf conveyors include:

  • Optional frame cut-outs and belt lifters for continuous access inside the conveyor

  • Solid UHMW wear strips can be removed quickly without tools for cleaning

  • Tip-up tails for quick release of belt tension

  • Continuous TIG-welded 304 stainless steel frame eliminates fasteners in food zone

  • Patented sprocket alignment key

  • Spiral cam belt tensioning with patent-pending threadless design.

www.dornerconveyors.com
