Heavy Duty Mobile Flow Rack

The flow rack is used to “flow” in production parts on their assembly line.

Creform Sized

Creform Corporation (Greer, SC) has designed and produced a mobile heavy-duty flow rack for use in the body shop of a large automotive assembly plant. The flow rack is used to “flow” in production parts on their assembly line. The rack is built using Creform 42 mm pipe and joints for extra capacity and rigidity, as well as providing for flexibility and reusability by this long-time customer. Specifically:

  • The unit features wide Creform Placon roller conveyor for excellent flow characteristics and strength, while the low-friction skate wheel conveyors allow for shallow flow lane angles that are suitable for both plastic returnable totes as well as cardboard boxes. The gravity flow rack assists in first-in, first out (FIFO) inventory management.
  • The flow rack is configured with a stair step design to improve access to parts in plastic totes presented at the two supply levels. Each level features lane dividers to ensure that the totes are loaded within their lane and stay in their lane. Each of the flow rack’s levels can be repositioned or whole flow rack customized with only simple tools.

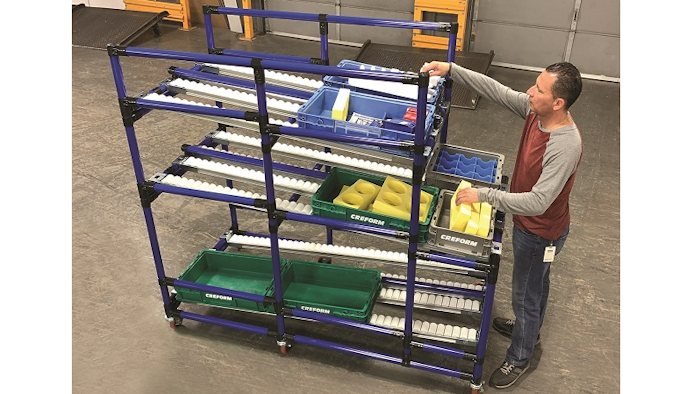

  • The flow rack pictured is 54" W x 72" D x 71" T and has a load capacity rating of 800 lb. It features 4 in. casters—for easy movement when cleaning or repositioning, and six swivel wheels, two that feature brakes.
  • Besides lineside use, the Creform flow rack can be part of a supermarket storage area. It is ideal for picking individual SKUs that make up a manufacturing kit, typically appropriate for assembly applications., 800-8398823
