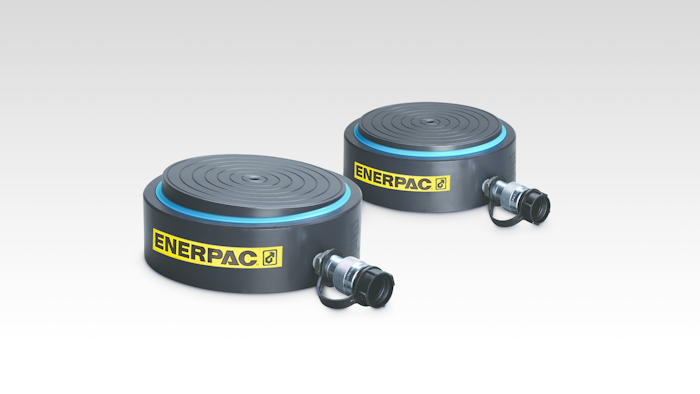

Ultra-Flat Hydraulic Cylinders

The CUSP-Series has an integrated tilting function with 10 to 1,000-ton capacity.

Enerpac

Enerpac (Menomonee Falls, WI) announces availability of its new CUSP-Series and CULP-Series high-tonnage ultra-flat cylinders designed for harsh conditions which require low clearance, especially for industrial maintenance and construction applications. The CUSP-Series has an integrated tilting function with 10 to 1,000-ton capacity, 0.26-0.69 inches stroke and maximum operating pressure of 10,150 psi. The CULP-Series has an integrated stop ring with 10 to 50-ton capacity, 0.24 inches stroke and maximum operating pressure of 10,150 psi.

CUSP-Series features include:

  • Up to 4 percent side load of maximum capacity.
  • Extremely low collapsed height.
  • Integrated tilting function up to 4 degrees.
  • Nitrocarburized surface treatment for harsh conditions.
  • β€œRed Line” for visual maximum stroke limitation.

CULP-Series features include:

  • Up to 4 percent side load of maximum capacity.
  • Stop ring for maximum stroke limitation.
  • Extremely low collapsed height.
  • Nitrocarburized surface treatment for harsh conditions.

www.enerpac.com; 262-293-1600
