Maintenance-Free Workstation Cranes

All AL System Workstation Cranes feature lightweight aluminum track profiles for loads up to 2,200 lbs., exclusive EMH T-Slot design, anodized enclosed rails and anti-kick-up nylon wheels.

Emh

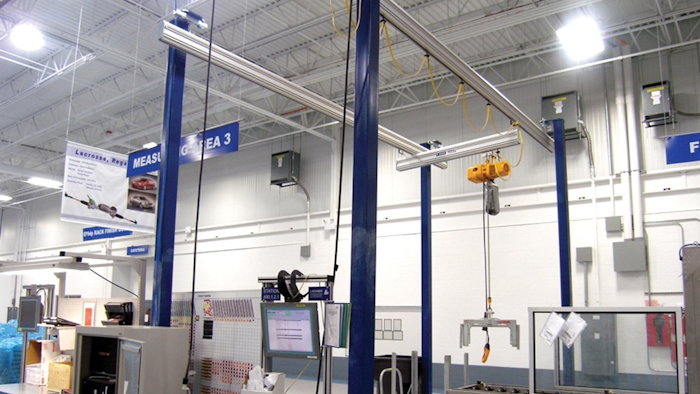

AL System Lamp Post Workstation Cranes from EMH (Valley City, OH) are flexible and versatile, offering workstation placement solutions that provide convenient access for optimum efficiency. According to the company, they are economical, easily installed and maintenance-free. Additionally, all AL System Workstation Cranes feature lightweight aluminum track profiles for loads up to 2,200 lbs., exclusive EMH T-Slot design, anodized enclosed rails and anti-kick-up nylon wheels. Other features include:

  • Only four upright columns needed per runway cell, with the crane runway clamped onto the top of the frame at the corners using standard AL clamps. The bridge and lifting devices are then hung from the runway, which enables convenient and open access at either end. Maximum overall height is 15-feet.
  • Lightweight aluminum track profiles, meaning the AL System Cranes are easily configured to suit almost any application need and accommodate a wide variety of lifters and handling devices, safely and efficiently. Anodized aluminum extrusions and enclosed rails maximize strength, provide longer durability and add to aesthetics. AL System Cranes are articulating, meaning that they are free moving and do not require movement at right angles. This feature also provides smooth operation and a low starting force even when the load is at the end of the bridge.
  • Anti-kick up nylon wheels to deliver smooth and safe movement of the trolley inside the enclosed rail.
  • An exclusive EMH T-Slot design for splicing two pieces of rail together. This makes for easy installation with a wide variety of integrating equipment, such as lifters and end-effectors, chain hoists or smart lifters. EMH T-Slot splice design also eliminates bumps when a load is moved over track splices.

www.emhcranes.com; 330-220-8600
