Disc Couplings with Integrated Coolant Tube for Spindle Drives

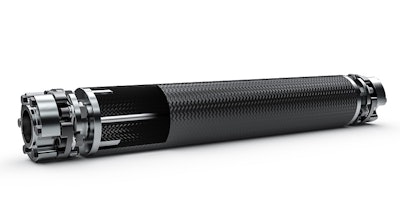

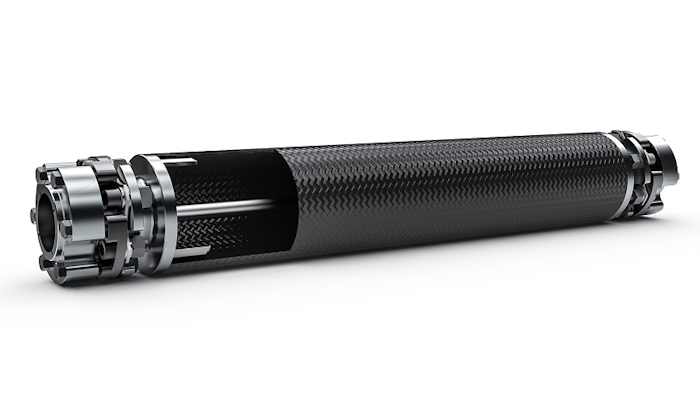

This specially designed double disc spindle coupling can transport coolant directly to the cutting head over long distances using an integrated inner pipe, vertical support, and special adaptation interfaces on each end.

R W A 59566e66a754f

R+W (Bensenville, IL) has recently expanded its LP product line with a new disc pack coupling model. In addition to the wide range of standard designs, R+W can now supply a version with an integrated coolant tube. This offers many advantages to manufacturers of machine tools with long spindle drives:

  • This specially designed double disc spindle coupling can transport coolant directly to the cutting head over long distances using an integrated inner pipe, vertical support, and special adaptation interfaces on each end.
  • Since these couplings are often used in highly dynamic and high speed applications, lightweight carbon fiber (CFRP) or aluminum spacer tubes are typically used.
  • Symmetric conical clamping hubs along with fine balancing help guarantee smooth operation at high speeds.
  • The torsionally rigid disc packs compensate for misalignment between the connected shafts.

According to R+W, this robust, high performance line of disc couplings provides users with a simplified spindle setup, reduced assembly times, faster operating speeds and longer tool life.

www.rw-america.com; 630-521-9911
