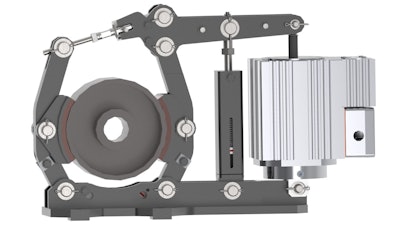

Force Control Industries (FAIRFIELD, OH) introduces a new line of Build America, Buy America Act (BABAA) compliant thruster brakes under the brand name HYDRASTOP. These spring-set, electrohydraulic thruster-released brakes are currently available for 6–13” drums, with plans for larger sizes and a complete disc brake series.
HYDRASTOP thruster brakes are used to statically hold and/or dynamically stop loads in industrial applications such as cranes, movable bridges, conveyors, stadium covers, mining drag lines, and marine deck equipment.
Features:
-
Compliant with Build America, Buy America Act (BABAA) domestic content requirements.
-
Designed to AIST Technical Report 11.
-
Torque ratings available from 35 to 2,140 ft/lbs.
-
Sealed auto-adjustment device resists environmental damage.
-
Lubrication-free bushings in all major pivot locations.
-
Slotted arms reduce shoe drag and promote even brake pad wear.
-
Uses ester-based transformer oil suitable for sensitive environments.
-
Cast aluminum thruster housings are anodized and IP66 rated.
-
Finned housing supports radiant heat dissipation.
-
Bypass labyrinth seal minimizes internal seal wear.
-
Internal check valves enable adjustable lifting/lowering times.
-
Internal wet motor design.
-
Optional accessories include sealed auto-adjusters, thruster heaters, flow controls, corrosion-resistant hardware, limit switches, and various brake enclosures.
Meets AIST Technical Report 11 requirements and is suitable for use in applications that require environmentally conscious materials and durable, low-maintenance braking systems.
For more information, visit the Force Control Industries webpage.
