Gas Heated Conveyor Wash System Delivers Continuous Cleaning Efficiency

For cleaning and drying heavy multi-ported parts.

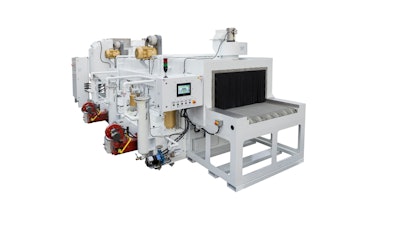

Renegade I Series 4824 Pass Through Wash System 2
Renegade

Renegade (Reedsburg, WI) announced the I-Series 4824 Pass-Through Wash, Rinse, Dry Parts Washer System, which is custom designed to deliver multi-stage continuous cleaning efficiency to clean and dry heavy multi-ported parts transported via inline conveyorized operation.

Renegade Aqueous Parts Washers are designed to work with Renegade detergents for maximum cleaning without residue buildup or bio-slime.

Features:

  • Each wash and rinse stage compartment contains a 512k BTU gas immersion heater and spray manifolds with strategically placed nozzles
  • 225k BTU gas heated dry stage contains dual zones
  • 15-horsepower air blower in zone one and two 2-horsepower heated recirculating blowers in zone two
  • 48”W x 24”H wash zone with 750 lb conveyor belt weight capacity
  • Powerful gas immersion heat system
  • Sump sweep with dual filtration wash cycle
  • Power vent for rapid steam removal
  • 10” PLC/HMI touch screen user-friendly controls with 7-day timer
  • Filter monitoring
  • Preset maintenance & wash cycles and temperature display
  • Smart liquid level sensing system with auto fill
  • Electronic foam sensing system
  • Heavy duty variable speed conveyor transport system
  • Rugged stainless-steel construction

renegadepartswashers.com
