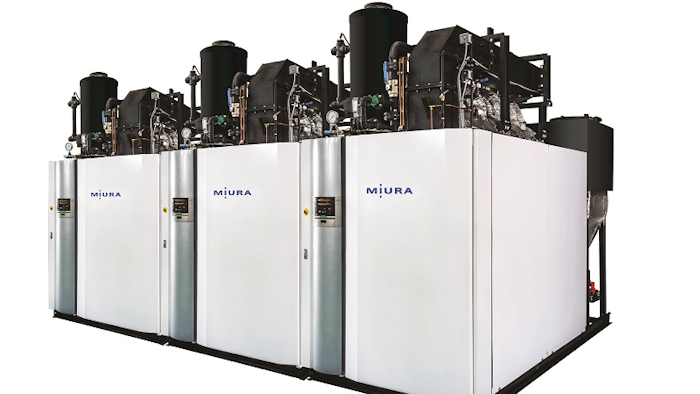

Miura Boilers (Rockmart, GA) offers unique LX and EX Series boilers, with features that include the following:
- Miura’s LX Gas/Low NOx Series, Low and High Pressure Steam Boilers (available in boilers from 50 -300HP) use natural gas or propane and are available in a range of steam options (300 MAWP, 170 MAWP or 15 MAWP). Their compact size allows most models to fit through an industrial 7-foot doorway, while their naturally low NOx (nitrogen oxides) ratings are as low as 9ppm depending on model. This meets or exceeds current and proposed regulations for nitrogen oxide emissions levels. Hot water boilers are also available depending on models.
- Miura’s EX Gas/Oil Series High Pressure Steam Boilers (available in 100HP, and in 50 HP increments up to 300HP models) are the most versatile industrial steam boilers in the world. The EX design minimizes carryover and produces 99+% dry saturated steam in less than 5 minutes from a cold start. Faster start-up means less fuel used, greater savings, and more responsible use of precious natural resources.
- The LX-Series design consists of vertical water tubes in a rectangular array, while the EX-Series utilizes vertical tubes in a circular array. Both headers of each series are encased in a castable refractory with only the tubes exposed to flame and/or combustion gases. The upper header is attached to the lower header only by the tubes. As the tubes expand and contract, the headers float up and down accordingly.
- The ‘floating header’ concept allows for even thermal expansion of the tubes, therefore reducing stress points within the boiler.” The ‘leaky tube’ problems associated with firetube and bent watertube designs have been eliminated.
www.miuraboiler.com; 888-309-5574
