CableEye HV-Rated QuickMount Housing for Connector Boards

Connect test interface boards to the 64-pin headers of any expansion module — even at some distance.

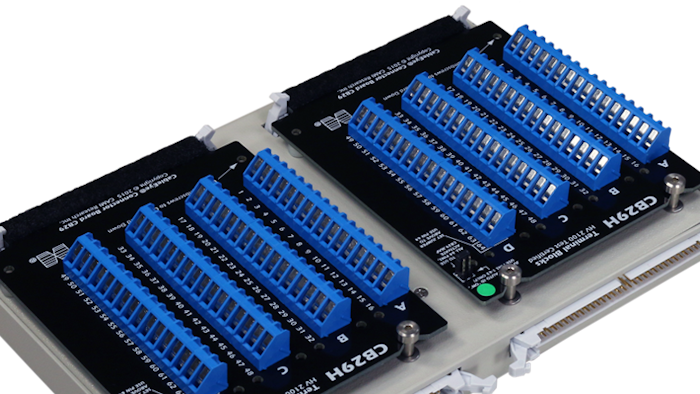

The QuickMount housing from Cami Research for CableEye automation-ready, cable and wire harness testing systems.
The QuickMount housing from Cami Research for CableEye automation-ready, cable and wire harness testing systems.

CAMI Research (Acton, MA) has released a High-Voltage (HV)-rated QuickMount housing (CBH2) for its CableEye automation-ready, cable and wire harness testing systems. As a free-standing, quick-release board fixture, it allows users to connect CAMI’s test interface boards to the 64-pin headers of any expansion module - even at some distance. The housing may be used with any CableEye model and is rated to 2,100 VDC/1,500 VAC. Additional features include:

  • The ability to connect boards to an expansion module, or for applications in which the connector boards must be separated from the tester..
  • The ability to lock boards in place using supplied nylon thumbscrews.
  • The ability to use multiple housings on systems larger than 256 test points.
  • 2 types of expansion cable:
    • Ribbon cables (Item 856) for test voltages up to 500 V.
    • Ampmodu cables (Item 654) for higher test voltages — the item ships with two 5” ribbon expansion cables.

For more information, email [email protected], visit www.camiresearch.com, or call (978) 266-2655.
