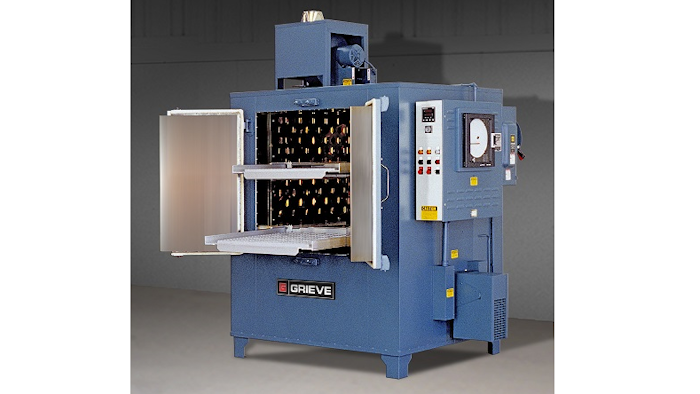

No. 903 is a 650°F (343°C), cabinet oven from Grieve (Round Lake, IL), currently used for holding large parts on rollout shelves at the customer’s facility. Workspace dimensions of this oven measure 38” W x 38” D x 38” H. 40 KW are installed in Incoloy sheathed tubular heating elements, while a 1000 CFM, 1-HP recirculating blower provides horizontal airflow to the workload. Features include:
- 6” insulated walls and an aluminized steel exterior.
- A Type 430 stainless steel interior and two (2) rollout shelves, 28” wide x 37” long rated 150 lbs. loading each.
- Safety equipment for handling flammable solvents.
- Controls including a digital indicating temperature controller, manual reset excess temperature controller with separate contactors, recirculating blower airflow safety switch, 10” diameter circular chart recorder and fused disconnect switch.
