For operations that produce toxic dusts like manganese, hex chrome, nickel and zinc oxide, it is a priority to keep the workplace safe and compliant with OSHA regulations. But traditional remote-mounted HEPA filters require expensive, cumbersome ducting configurations and additional supports that take up valuable space. Camfil APC (Jonesboro, AR) dust collectors are now available with Integrated Safety Monitoring Filters (iSMFs) to isolate toxic particulates, ensuring that no measurable weight of emissions is being discharged. Specifically:

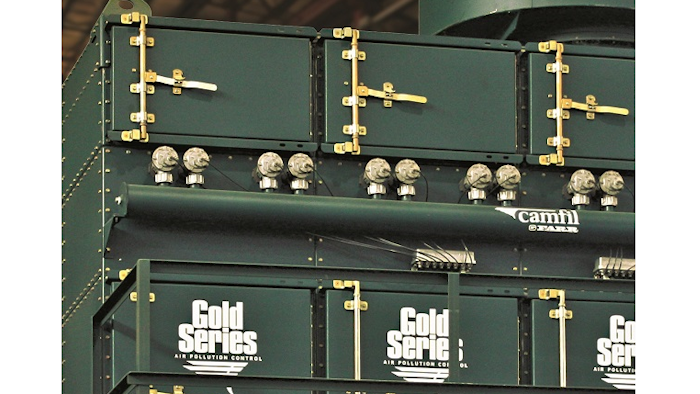

- The iSMF units are installed at the factory on top of Camfil APC's standard Farr Gold Series dust collector, which minimizes the total footprint. No additional ductwork, transitions or supports are required. Hazardous particulates are contained because the iSMF unit allows filters to be located prior to the fan, keeping them under negative pressure.
- These after-filters also prevent collected dust from re-entering the workspace if there is a leak in the primary filters and stop flames that occur from combustible dust incidents, protecting downstream equipment. The iSMFs are monitored for changes in differential pressure and can be programmed to signal an alarm or shut down the dust collector, if necessary.
- iSMF filters are available in HEPA-grade or ASHRAE-grade. The HEPA-grade filters achieve a DOP efficiency of 99.97% on 0.3-micron particles. The ASHRAE-grade Riga-Flo filters achieve a 95% ASHRAE efficiency and are rated for 2650 cfm, (4248 cmh), per filter.
