Sanitary Flange Air Conveyors Ease Installation

The ISO 2852 compatible sanitary flanges limit areas where bacteria can grow and help prevent contamination.

Exair 2

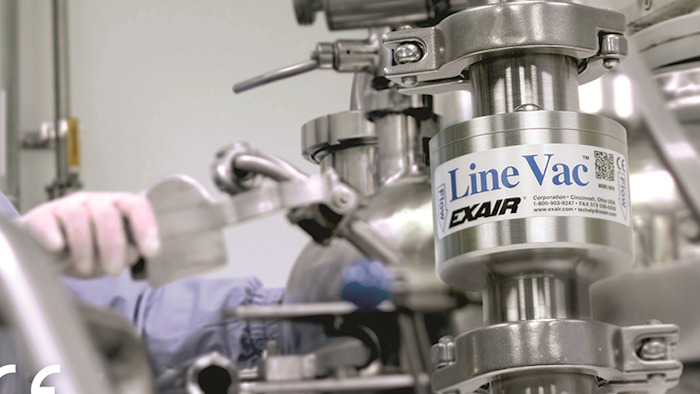

New Sanitary Flange Line Vac air operated conveyors from EXAIR (Cincinnati, OH) are the best way to convey materials through systems which require frequent or mandatory cleaning. The ISO 2852 compatible sanitary flanges limit areas where bacteria can grow and help prevent contamination. Made from type 316 stainless steel to provide maximum hygiene and corrosion resistance, these Line Vacs are available in 1-1/2", 2", 2-1/2" and 3" flange sizes. Flanged Line Vacs convert flanged piping systems into a powerful conveyor for product, parts, scrap, trim and other bulk materials. Their larger size makes them perfect for conveying bigger parts and large volumes of material over long distances. Additional features include:

  • A design which ejects a small amount of compressed air to produce a vacuum on one end with high output flows on the other. Response is instantaneous and regulating the compressed air pressure provides infinite control of the conveying rate.
  • Applications including material conveying, part transfer, fiber tensioning, scrap trim removal and filling operations.
  • CE compliance, and ability to meet OSHA pressure requirements.
  • Additional families of Line Vac available to fit hose, tube or threaded pipe. Many smaller sizes are available down to 3/8" hose or 3/8 NPT threads and large hose or pipe sizes up to 5". Many other materials are available.

www.exair.com/33/sflv.htm; 800-903-9247
