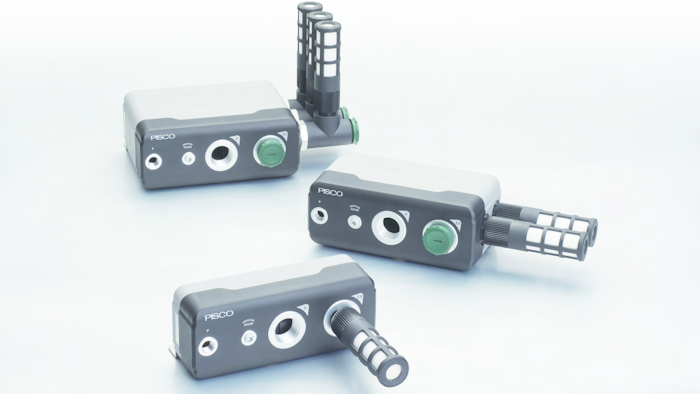

Featuring a suction flow approximately 2.2 times larger than air consumption, Pisco’s (Elmhurst, IL) new Type VLM Large Flow Vacuum Generator saves energy. The VLM’s multi-stage nozzle ejector and multi-layer structure ensure a high vacuum of -94kPa (-27.8inHg) and a large suction flow rate of up to 1,110ℓ (39.2cfm)/min[ANR]. To accommodate available installation space, the VLM’s silencer can be installed on either the side or the front of the vacuum generator, or with a rotary joint. Front installation is only available with the single layer type.
FKM sealing provides excellent ozone resistance. This large flow vacuum generator is suited for a range of industries, including automotive, semiconductor, food and medical.
