Sanitary Paddle Blender Imparts Shear

The combined action of paddles and agitators effectively blends solids with solids, and solids with liquids to produce smooth pastes or slurries.

Munson 2

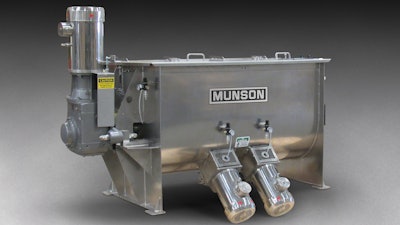

A new Model HD-2.5-5-SSI Sanitary Paddle Blender from Munson Machinery (Utica, NY) provides added shear to de-agglomerate dry bulk solids, pastes, slurries and/or emulsions of low- to medium-density materials in batches up to 25 cu ft (0.71 m3).

Fabricated of #304 stainless steel, it features a stationary U-shaped vessel with a flat cover, bottom discharge valve, and horizontal flange-mounted agitator that can be removed vertically for rapid sanitizing and maintenance, conserving floor space.

A 10 hp (7.45 kW) wash-down duty motor drives the agitator shaft assembly configured with 16 radial arms and short-length paddles that move material in smaller zones over shorter distances with greater cutting action than possible with ribbon-style agitators. Additional shear is provided by four independently-powered intensifiers, each driven by a 5 hp (3.73 kW) wash-down duty motor.

The combined action of paddles and agitators effectively blends solids with solids, and solids with low or high percentages of liquids to produce smooth pastes or slurries.

www.munsonmachinery.com, 800-944-6644
