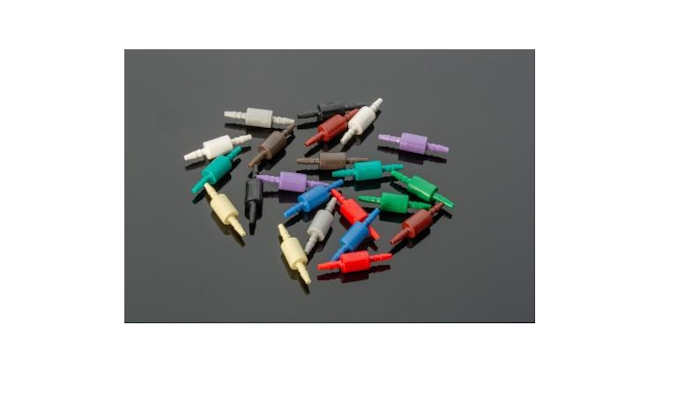

The Orifice Restrictors from Air Logic (Racine, WI) are designed for use in pneumatic control circuits. They are available in eleven color-coded sizes from 0.004" to 0.040"; the orifices are precision molded of polysulfone and are held to flow tolerances of +/- 4%. Orifice Restrictors can be provided for inline applications or encased in a barbed fitting for threaded applications. The F-2815 Series Orifice Restrictors are for inline installation. They are available with straight ports for 1/16" I.D. tubing or with barbs for 1/16" or 1/8" I.D. tubing.
- Orifice Diameter: 0.004" to 0.040"
- Maximum Supply: 100 PSI
- Operating Temperatures: 40 degrees to 120 degrees F. (5 degrees to 48 degrees C.)
- Recommended Filtration: 5 micron
- Flow Tolerances: +/- 4%
www.air-logic.com; 262-639-9035
