Pneumatic Precision Regulators Suite Several Applications

NITRA pneumatic parts now includes a range of precision regulators.

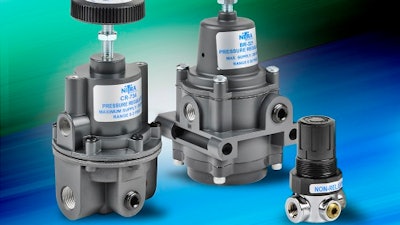

AutomationDirect’s line of NITRA pneumatic parts now includes a range of precision regulators designed for applications such as control and analysis instrumentation, medical equipment actuation, web tensioning, high-grade paint booths, and drink process machines.
AutomationDirect’s line of NITRA pneumatic parts now includes a range of precision regulators designed for applications such as control and analysis instrumentation, medical equipment actuation, web tensioning, high-grade paint booths, and drink process machines.
AutomationDirect

AutomationDirect’s (Cumming, GA) line of NITRA pneumatic parts now includes a range of precision regulators designed for applications such as control and analysis instrumentation, medical equipment actuation, web tensioning, high-grade paint booths, and drink process machines.

The BR and BFR Series Regulators feature:

  • A design for use in systems that require clean, accurate instrument air.
  • Diecast aluminum alloy bodies with irridite and baked epoxy finish.
  • Nitrile elastomer and nylon fabric diaphragms.
  • Nitrile elastomer valve seats.
  • Availability with 1/4” and 1/2” NPT ports.
  • Pipe, bracket or through-body direct mountable.
  • BFR series combination filter and regulators that feature a 40 micron polyethylene filter (5 micron optional), two 1/4” NPT gauge ports, and a manual drain.

The CR Series Precision Regulators feature:

  • Diecast aluminum alloy bodies.
  • Stainless steel, brass, plated steel, and acetal internal components.
  • A poppet valve balanced by a rolling diaphragm to ensure a constant output pressure even during wide supply pressure variations.
  • Pipe or bracket mountable.
  • Availability with 1/4”, 3/8”, and 1/2" port sizes and two pressure ranges.

The DR Series Precision Regulators feature:

  • A design for use in precision fluid control, air gauging, and gas mixing.
  • Diecast zinc alloy bodies.
  • Stainless steel, brass, plated steel, and acetal internal components.
  • Availability with 1/4" or 3/8” ports and two pressure ranges.

The NITRA ER Series Precision Regulators feature:

  • Miniature regulators with diecast aluminum alloy, chromate, and epoxy paint housings.
  • Two 1/8” ports that provide regulation accuracy and repeatability.
  • Exact pressure control and substantial flow capacity under variable operating conditions with limited space.

The HydroMode FR series food-grade regulators feature:

  • Compact units that provide economical, high performance pressure regulation of drinkable water.
  • A diaphragm-operated design that delivers accurate downstream pressure.
  • A molded rubber supply valve that provides precise regulation while helping to prevent leakage. Approval by National Sanitation Foundation (NSF) or the Food and Drug Administration (FDA) for use in potable water systems.
  • Two 1/8” gauge ports.
  • Availability with 1/8” and 1/4" NPT ports.
  • Pipe, bracket, or panel-mountable.

For more information, visit: www.automationdirect.com/pneumatic-FRL.
