Electromagnetic Flow Instruments Optimized for Safety

Instruments simplify installation, speed commissioning, and streamline both operation and maintenance activities.

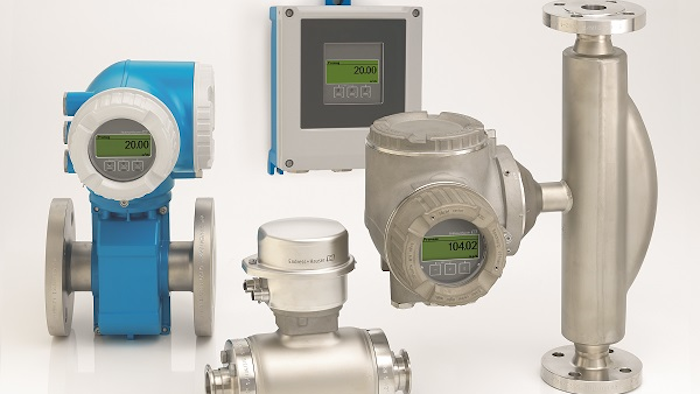

The Proline 300/500 family of Coriolis mass and electromagnetic flow instruments from Endress+Hauser.
The Proline 300/500 family of Coriolis mass and electromagnetic flow instruments from Endress+Hauser.
Endress+Hauser

Endress+Hauser (Greenwood, IN) has released the Proline 300/500, a family of industry optimized Coriolis mass and electromagnetic flow instruments that simplify installation, speed commissioning, and streamline both operation and maintenance activities.

The Proline Promass Coriolis mass flowmeters feature:

  • Availability in 11 models ranging from 1/24” to 14” in diameter.
  • The ability to measure flows up to 100,000 tons per day.

The Proline Promag flowmeters feature:

  • Availability in three models in sizes from 1/12” to 78” for volume flows up to 634 million gallons per day.

Both types are available in models suitable for high temperatures, corrosive fluids, hygienic and sterile process applications. Additional features include:

  • Connection to control systems via 4-20mA HART, WirelessHART, PROFIBUS PA/DP, FOUNDATION Fieldbus, Modbus, EtherNet/IP or PROFINET.
  • Access to users via the device’s display, a web server, a wireless LAN, handheld devices, asset management or process automation solutions, and Fieldbus protocol.
  • Fast commissioning,
  • In-situ device verification during operation.
  • Continuous self-diagnostics.
  • Automatic on-board data storage.
  • Transmitter housings available in aluminum, hygienic or severe service stainless steel.
  • A two-chamber system with a front-mounted compartment for connecting source power, wiring the analog and/or digital inputs and outputs, and accessing the Ethernet service access port or device display.
  • A second chamber that permits service technicians to access the electronics modules for repair functions while maintaining protection against dust and contamination.
  • Local or remote four-line backlit optical displays with a WLAN connection..
  • Custody transfer approvals and meet the requirements of cCSAus, ATEX, NEPSI, INMETRO, EAC, IEC/EN 61326, NAMUR NE21, and EU and ACMA directives.
  • Approved for use in SIL 2 and SIL 3 applications.
  • A HistoROM function that protects data storage automatically β€” including an event logbook and data logger.

For more information, visit  www.us.endress.com/proline-300-500.
