Pneumatic Weld Head

The KN-II is used to weld sensors, frequency devices, filaments, heating elements, photonics packages, strain gauges, transducers and more.

Amada Miyachi Sized

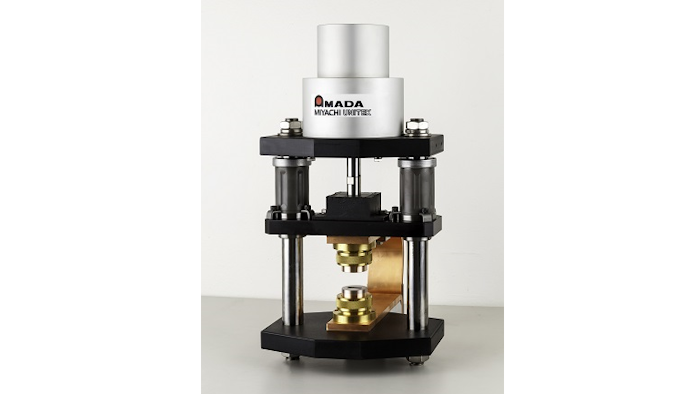

AMADA MIYACHI AMERICA INC. (Monrovia, CA) highlights the KN-II Series Pneumatic Weld Head, a robust, low maintenance weld head ideal for opposed electrode welding applications that require fast follow-up to prevent material expulsion. The KN-II is also a good choice for welding ring or annular projections with a perimeter length ranging from 0.40 to 7.0 inches and for microelectronic cap welding applications requiring co-planarity. Extensively proven in industrial environments around the world, the KN-II is used to weld sensors, frequency devices, filaments, heating elements, photonics packages, strain gauges, transducers and more. The KN-II features:

  • A dual cylinder design that delivers more than 4000 pounds of weld force.
  • A robust, low maintenance die set design, and the weld head boasts rigid construction using a 25 micron matched linear ball bearing bushing and tie rod for precise positioning and planarity.
  • Optional configurations for use with any manual or automated welding system and offers simple actuation using the Benchmark SS-1 pneumatic weld head controller.

www.amadamiyachi.com; 626-303-5676
