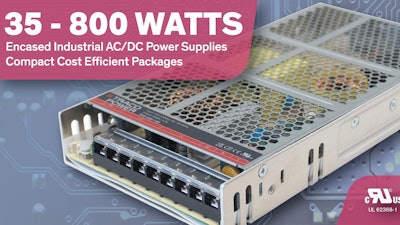

TRACO Power is proud to announce the release of four additional TXN series power levels. These 35, 200, 350, and 800 Watt, encased AC/DC power supplies are the latest releases for the TXN family of power supplies which will eventually cover 25 to 1,000 Watts and will be the most cost-efficient encased AC/DC product series that TRACO Power has ever offered.
Our TXN line specifically focuses on providing feature rich, cost-efficient industrial power supplies. All models come standard in low profile metal enclosures, with reinforced 3000VAC I/O isolation, and output voltage adjustments of ±10%. Additional features include EN55032 class B ratings for conducted and radiated emissions, plus EMC characteristics for Industrial, Automation, and Test & Measurement applications, making the TXN series an ideal solution for various industrial and cost sensitive designs.
- Universal input range 85-264 VAC
- Operating temperature range –40°C up to +70°C
- 3000 VAC reinforced I/O isolation
- Internal EN55032 class B filter
- Active PFC above 100W
- Output voltage adjustment ±10%
- Short Circuit Protection | Over Voltage Protection
- IEC/EN/UL 62368-1 safety approvals
- EN 61000-3-2 compliant
The new TXN models are in stock now and available through TRACO Power’s global distribution network.
