SIM Card Connectors Have More Signal Pins

The low profile 5236 Series µSIM memory card connectors ensure secure card operation for 3,000+ mating cycles in mobile electronics.

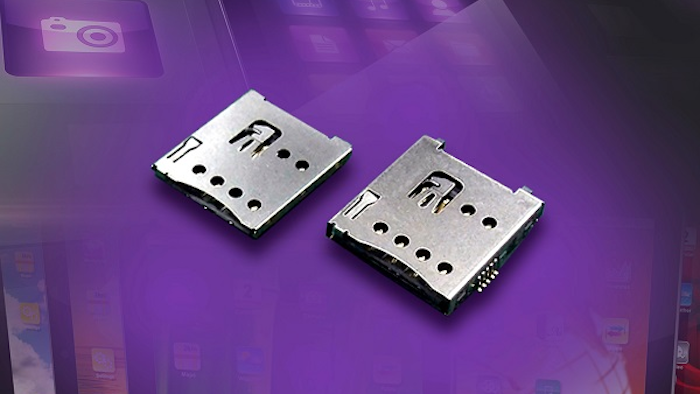

The 5236 Series µSIM memory card connectors from Kyocera Connector Products.
The 5236 Series µSIM memory card connectors from Kyocera Connector Products.
AVX

AVX (Fountain Inn, SC) has announced the 5236 Series µSIM memory card connectors from Kyocera Connector Products. Features include:

  • Availability in single- and dual-card versions, both share a common PCB layout.
  • Eight signal pins for the single version, 16 for the double.
  • A shell guide mechanism that prevents incorrect card insertion and unwanted ejection.
  • A 0.7 mm pitch.
  • A normally closed internal card switch that detects the presence of an inserted card to lower overall power consumption.
  • A push-push, spring-eject mechanism with an assured card ejection distance of 3.8 mm for improved workability.
  • Rated for 5V/0.5A per contact.
  • Operating temperatures from -40°C to +85°C.
  • RoHS compliance.
  • Guaranteed for 3,000 mating cycles.
  • The single-card version measures 16.2 mm x 14.4 mm x 1.30 mm (L x W x H), and the dual-card version measures 17.22 mm x 16.28 mm x 2.75 mm.

For more information, visit http://www.avx.com/products/connectors/memory-products/microsim-card-connectors-5236-series/; or call 864-967-2150.
