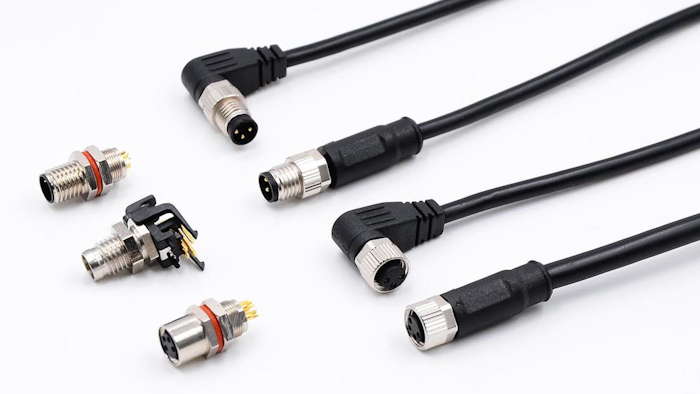

Chogori's IP67-rated M8 model connectors for indoor and outdoor applications.
Chogori
Chogori (Newark, DE) has expanded its M Series connector family to include IP67-rated M8 models for indoor and outdoor applications. The screw-locking waterproof M8 connectors are designed to meet the requirements for industrial machinery, marine electronics, LED screen power, and signal control applications. Features include:
- Resistance to vibration, water, dust and other materials.
- An IP67 rating.
- Available with 3 to 4 contacts.
- A rated current of 3 Amps.
- A rated voltage of 30V or 60V.
- An operating temperature range of -40°C to 85°C. More than 100 mating cycles.
- A housing made of PA66 plastic material.
- Pins made of copper alloy with gold over nickel plating for mechanical stability.
- A connector body made with brass for electrical conductivity.
For more information, visit http://www.chogori-tech.com/m8.html.
