Category 4, Type 4 Light Curtain

It has a seven-segment display with LEDs that display real time status and diagnostics.

Norstat Sized

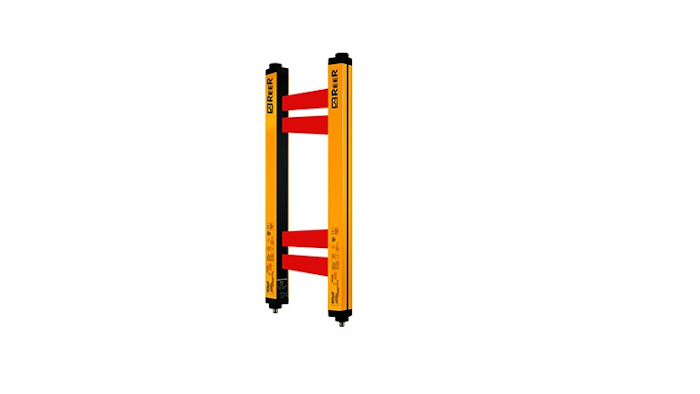

Norstat, Inc. (Rockaway, NJ) addresses the need for safeguarding high risk industrial applications with the ReeR Admiral, category 4, Type 4, light curtain. The Admiral is described as the ideal light curtain for protecting areas where any material being processed or the moving parts of a machine cross the field protected by the light curtain. Features include:

  • Extremely easy connection and installation.
  • Seven-segment display with LEDs that display real time status and diagnostics.
  • Master/Slave models for cascade connection of two barriers, models with automatic start/restart and built in control function, models with Floating Blanking as well as Long Range models with 2, 3 and 4 beams that reach a maximum of 60 m or a Dual Beam model can reach a maximum of 80 m.
  • Safety level type 4 / Cat 4 designation, according to IEC and EN standard; it has 2 PNP safety outputs for short circuit, overload and polarity reversal protection along with LED’s for status and diagnostics and carries a protection rating of IP 65.

www.norstat.com; 973-586-2500
