1000V 4A Bridge Rectifier

Low-profile device ideal for power supply and fast charger applications where space is constrained.

Screen Shot 2020 10 13 At 11 17 09 Am
Central Semiconductor Corp.

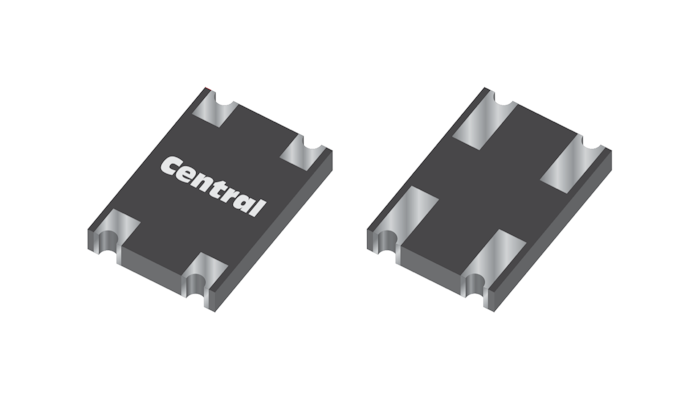

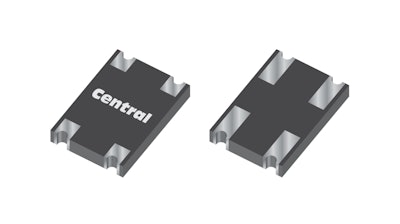

Central Semiconductor Corp. introduces the CBRDFA4-100, a 4.0A, 1000V full wave bridge rectifier with a glass passivated die.

Packaged in a low profile 1.55mm durable epoxy BR DFN-A case, this device is ideal for power supply and fast charger applications where component space and height are design constraints.

The CBRDFA4-100 can provide full wave AC to DC linear voltage rectification for power supplies and adapters in consumer, industrial, scientific, and medical applications. With a low VF of 1 volt max at 4 amps, this device is an ideal, energy efficient solution.

Complete specifications are available at https://www.centralsemi.com/featured-products/31.
