Bioengineers Use Crab Shells to Replace Damaged Tissues

This method will help replace damaged soft tissues in the human body.


A team of scientists from Sechenov First Moscow State Medical University used 3D printing to create biocompatible structures on the basis of chitin obtained from crab shells.

This method will help develop structures with given shapes for various biomedical tasks, including the replacement of damaged soft tissues in the human body.

The article was published in Marine Drugs.

Shells and other byproducts account for 50% to 70% of the weight of all crabs caught in the world. As a rule, they are destroyed that requires additional investment.

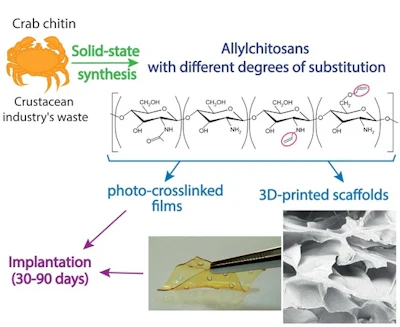

Ksenia 2

Only a minor part is processed. However, the bodies of marine crustaceans contain a lot of chitin. This polysaccharide is widespread in the wild -- for example, the exoskeletons of insects are made of it.

By removing the acetyl groups from chitin one can obtain chitosan - a biopolymer with a unique set of biological, physical, and chemical properties. It is biocompatible, i.e. does not cause inflammation or immune response when implanted into the body. It also has antifungal and antimicrobial properties and gradually decomposes in the body without leaving any toxic components. That is why chitosan and its derivatives are promising for medicine.

On this basis new types of biocompatible structures can be created to restore damaged tissues or carriers for targeted delivery of drugs.

The traditional way of obtaining chitosan from chitin requires treating the raw material with aggressive chemical reagents such as concentrated alkali solutions.

Due to the small amount of produced chitosan and the toxicity of the solutions these methods cannot be used on the industrial scale. The authors of the article suggested a more eco-friendly way of chitin modification -- mechanochemical synthesis.

The method includes three types of treatment of a solid mixture: with reagents, pressure, and shear stress. It requires less alkali than the traditional chemical synthesis, and no solvents, catalysts, and process initiators are used in it. The chitosan obtained this was may be used for medical purposes without purification and removal of residual toxic substances.

The scientists used the same method to synthesize a number of chitosan derivatives with different content of allylic groups (from 5% to 50%). In the course of such modification allylic groups (propylene derivatives, organic substituents with a double bond between carbon atoms) are added to the structure of chitosan.

This enables chitosan derivatives to form photo-bound films and 3D structures of any geometry under the influence of UV and laser radiation and in the presence of a photoinitiator.

A 3D scaffold after laser stereolithography (a) and lyophilization (b).A 3D scaffold after laser stereolithography (a) and lyophilization (b).Courtesy of Ksenia Bardakova

The films made of chitosan derivatives were obtained using the photopolymerization method: polymer solutions in acetic acid were placed on a plastic and irradiated with UV light until they solidified. To form 3D structures the researchers used a 3D printing technology called laser stereolithography. It is a simple and quick 3D modeling method that does not require expensive equipment. 3D scaffolds are formed layer by layer according to a computer model.

A photoinitiator was added to the solutions of chitosan derivatives, and then the photopolymerization reaction was initiated with laser. The obtained structures were first frozen and then dried in a vacuum chamber (this method is called lyophilization or freeze-drying). After that the material of the structures became porous.

On the final stage of the research the team implanted the formed structures in rats (under the skin in the interscapular region). The experiment in vivo lasted for 90 days, and none of the implants showed any signs of toxicity during this time. This indicates that the scaffolds are biocompatible. The scientists found out that the implanted structures started to biodegrade only after 60 days of the experiments. The team plans to learn how to manage this process and to create implants with required biodegradation speed.

"This method of chitosan derivatives structuring provides the creation of 3D structures with physiologically relevant sizes. They can be used to heal large (more than 1 cm) tissue defects," says Ksenia Bardakova, a co-author of the work, and a junior research associate at the department of modern biological materials, Institute for Regenerative Medicine, Sechenov University. "Having studied the stability of the samples in vivo, we demonstrated for the first time that the areas of degradation are distributed periodically, not chaotically. It confirms the hypothesis regarding the mechanism of biodegradation of chitosan-based materials: the least ordered amorphous areas of the polymer degrade first. The understanding of this mechanism will help us form structures in which the rate of degradation would be comparable to the rate of restoration of the replaced tissue or organ. The scaffold would degrade in the precise amount of time that is required by the damaged tissue to restore its integrity and functions".

The work is a part of a research cycle on the formation of 3D structures from hydrogels (with water as the dispersion medium in which solid particles form a 3D grid) based on natural polysaccharides. The research is carried out by the scientists of Sechenov University together with their colleagues from the Institute of Photonic Technologies RAS, Institute of Synthetic Polymeric Materials of RAS, and National University of Ireland Galway with the support of Russian Science Foundation. The participants of the work also represented the Institute of Chemical Physics RAS and Baikal Institute of Environmental Management SB RAS.

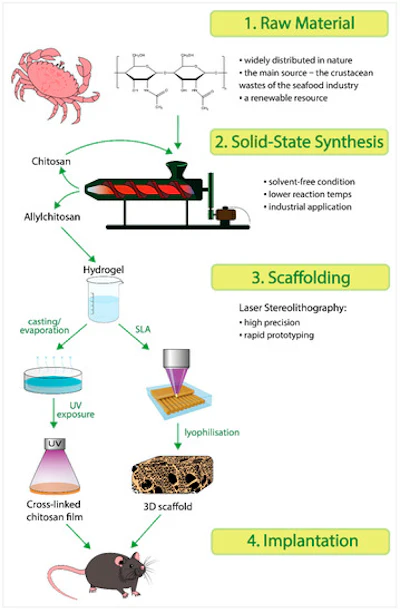

Ksenia 3
