Hydraulic hose twist occurs when equipment movement forces a fixed coupling to rotate, causing recurring failures. The VT-ZN RoT-lock solves this by combining a threaded flat-face coupler with an integrated live swivel that allows the hose to rotate freely while maintaining a secure, locked connection under high pressure and vibration.
- Root cause: Fixed couplings forced to rotate by equipment movement transfer torsional stress to the hose assembly, causing leaks, damage, and disconnection failures.
- Threaded design advantage: Flat-face screw couplers distribute mechanical load through thread engagement rather than locking balls, resisting pressure impulses and brinelling wear.
- Live swivel benefit: Integrated swivel allows hose rotation while keeping the threaded connection locked, eliminating torque transfer to the coupling.
- Residual pressure capability: Threaded mechanism provides mechanical advantage to connect under trapped pressure, reducing unsafe field workarounds and fluid loss.
- Applications: Rated for 500 bar operating pressure; ideal for construction, demolition, earthmoving, drilling, and hydraulic power units where hose torque causes recurring maintenance.
A twisted hydraulic hose does not always present as a coupling problem first. It usually shows up later as a leak, a damaged hose, or a difficult disconnection that no longer functions as it should.
On excavators, drilling rigs, and other high-pressure hydraulic equipment, hoses constantly move. A boom articulates; attachments change position. Machines work in tight spaces. That movement has to go somewhere. If the connection is fixed and the hose is forced to rotate, the hose assembly starts carrying stress it was not designed to carry.
I have seen this pattern many times in the field. A hose gets replaced. A fitting gets tightened. A coupler is replaced with another of the same style. The machine returns to work, but the operating condition that caused the problem remains.
Combining a Threaded Connection with Hose Rotation
Threaded flat-face couplers are often selected for hydraulic circuits that see high pressure, impulse loading, and vibration. The screw-to-connect design distributes mechanical load through thread engagement rather than relying on locking balls to carry it.
That matters because pressure impulses can damage ball-locking couplers over time. Brinelling occurs when locking balls create small indentations in the coupling surface.
Once that wear begins, connection and disconnection become harder, and leakage risks increase. A threaded connection helps address impulse loading. It does not, by itself, solve the hose torque.
If the hose twists during operation, the rotational force can still be transferred to the coupling. In some applications, it works against the threaded connection. The connection may be strong enough for pressure and vibration, but it is still being asked to absorb movement from the hose.
The VT-ZN RoT-lock adds an integrated live swivel on the male coupling. That feature allows the hose to rotate more freely, rather than transferring the torsional load to the connected coupler. In practical terms, the hose can follow the machine movement while the threaded connection stays engaged.
The VT-ZN RoT-lock is a 1-inch NPT flat-face screw coupler rated for operating pressures up to 500 bar. It combines a threaded connection, an automatic locking sleeve, a live swivel, an optimized connection thread, and residual-pressure connection capability.Stucchi USA
Maintaining a Secure Connection Under Vibration
Heavy equipment puts high demands on hydraulic connections. Pressure impulses, vibration, and attachment movement are all part of normal operation. When a connection begins to loosen, the result can be leakage, exposure to contamination, and downtime.
The VT-ZN RoT-lock uses an automatic locking sleeve that engages when the coupling is fully connected. This adds a secondary lock to the connection and helps prevent unwanted disconnection during operation.
For technicians and operators, confirmation matters. When the coupling is fully connected, the two black indicator rings are no longer exposed. That gives the operator a simple visual check that the halves have been threaded together completely and the safety lock has engaged.
The connection thread is also optimized to reduce the number of turns needed to connect. That matters around a large hose, a tight access point or an attachment that needs to go back into service quickly.
Managing Residual Pressure During Attachment Changes
Residual pressure is one of the most common reasons operators struggle with hydraulic attachment changes. A disconnected attachment can sit in the sun or warm up during the day. Fluid expands, pressure builds, and the coupler becomes difficult or impossible to reconnect with a standard design.
That is when field workarounds start. Someone cracks open a fitting. Someone forces the connection. Fluid is released, dirt gets introduced, or a component gets damaged.
The VT-ZN RoT-lock allows connection with residual pressure on both sides. The threaded mechanism gives the operator a mechanical advantage as the internal valves open during connection.
Connecting under residual pressure is not the same as connecting against active system pressure. The pump must be off, and the circuit should not have flowing fluid during connection or disconnection. Pressure should be relieved first whenever possible.
Still, residual pressure happens in real work. A coupler that can manage trapped pressure helps avoid unnecessary fluid loss, damaged threads, and unsafe connection practices.
Protecting the Hydraulic Circuit
Every attachment change opens the hydraulic circuit, creating a risk of contamination. Dirt can collect on exposed surfaces. Moisture can be present. Hydraulic oil can escape during disconnection.
Flat-face couplers help control that risk because the mating surfaces are smooth and easy to wipe clean before reconnection. They also reduce fluid loss and air inclusion compared with many older coupling styles.
The VT-ZN RoT-lock uses a flat-face valve design for applications where leakage and contamination control matter. Good handling still matters. Operators should clean both faces before connecting, inspect the seals, and protect the disconnected halves with the correct caps and plugs.
Designed for Demanding Hydraulic Equipment
The VT-ZN RoT-lock is a 1-inch NPT flat-face screw coupler rated for operating pressures up to 500 bar. Its design combines a threaded connection, an automatic locking sleeve, a live swivel, an optimized connection thread, and residual-pressure connection capability.

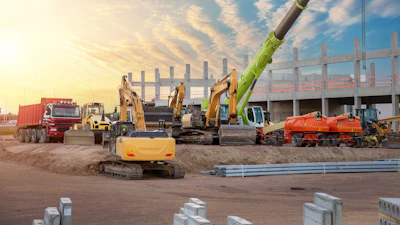

Potential applications include construction, demolition, earthmoving, hydraulic power units, drilling systems, and other hydraulic machinery where hose torque can shorten component life or create recurring maintenance problems.
The larger point is simple: repeated hose and coupling failures should not be treated as routine maintenance when the same failure keeps recurring. If the hose is being forced to twist at the connection point, replacing parts only resets the clock.
The VT-ZN RoT-lock addresses that condition by allowing the hose to rotate while the threaded hydraulic connection remains locked. That helps reduce mechanical stress at the connection, supports cleaner attachment changes, and gives hydraulic systems a more reliable interface in demanding work.
Scott Rolston is President of Stucchi USA, Inc., a subsidiary of Stucchi S.p.A. He has devoted 28 years to the fluid-power industry in sales, management, and leadership roles, including 20 years with Stucchi USA.
