Haz-Rated High-Speed Door

This is one of only two doors in the industry that is UL listed for hazardous rated environments.

Rite Hite Web 586d57131ac9e

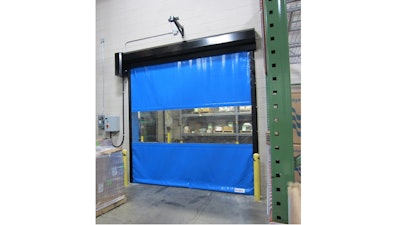

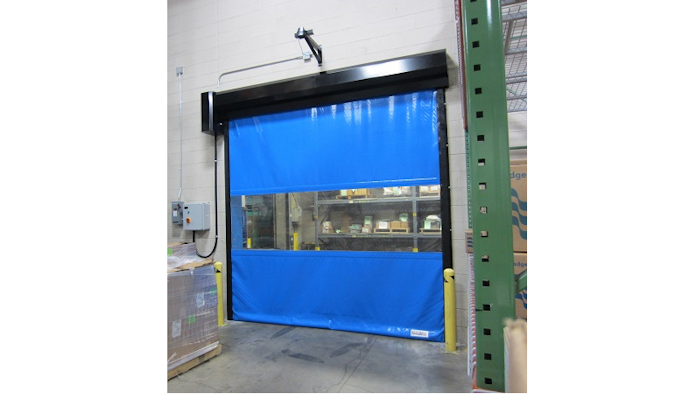

Rite Hite (Milwaukee, WI) has introduced the LiteSpeed HZ, a new addition to its line of high-speed doors. According to this company, this is one of only two doors in the industry that is UL listed for hazardous rated environments, and Rite-Hite’s FasTrax is the only other door with this distinction. The LiteSpeed HZ has a Class II, Division 2 listing from UL, carrying a Group Code G and Temperature Code 6. All electrical components are enclosed in a UL Type 4X (NEMA) or DustTight enclosure. Those components include photo eyes, encoder, junction box near the motor, and the motor and brake, making it the only door rated as a whole. Other benefits include:

  • A roll-up design which translates into a small physical footprint in the workplace.
  • Operating speeds of up to 65” per second.
  • Safety presence sensors, so personnel working near the door are likely to avoid a collision. However, if the LiteSpeed Clean is bumped or impacted, the TRUE Auto Re-feed will automatically reconfigure the door back on its tracks. This eliminates a potential breach in a clean room environment and the downtime and costs associated with repairing a traditional door.
  • A soft breakaway bottom, which provides a higher degree of protection for product, personnel and equipment.
  • An optional full-width vision panel, which allows workers to see what’s on the other side of the door.
  • A reversing slack sensor can reverse the door’s course if an obstruction is sensed.; 800-456-0600
