Large Field of View Metrology System

The new Fusion 350 is designed to characterize large parts or groups of small parts that primarily require two-dimensional measurement.

Qvi Sized

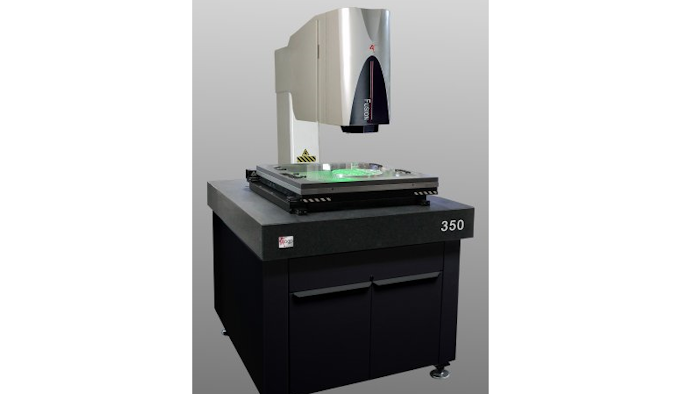

QVI (Quality Vision International; Rochester, NY) introduces its new Fusion 350 large field of view multisensor metrology system. QVI Fusion systems are innovative measurement tools that combine a large field of view (LFOV) optical system with available touch probe, laser, and micro-sensors to produce a family of uniquely productive metrology systems. The new Fusion 350 is designed to characterize large parts or groups of small parts that primarily require two-dimensional measurement. Features include:

  • A large field optical system, which allows high accuracy imaging of a wide area — up to 100 mm. QVI’s exclusive image analysis software tools can instantly process and identify all features and dimensions within the field of view, with no need for a pre-programmed measurement routine.
  • The capability of high speed measurement of 2D parts. With its large 450 x 450 mm measuring area and flexible dual magnification optics, it can easily accommodate large parts or groups of smaller parts, and measure both large and small feature sizes.
  • QVI ZONE3 Express CAD-based 3D metrology software. ZONE3 features a clear, simple user interface, and its kinematic model simulates the machine, part, fixtures, and measuring sensors, updated in real time.

www.qvii.com; 585-544-0450
