TurnCheck Shaft Measuring Systems

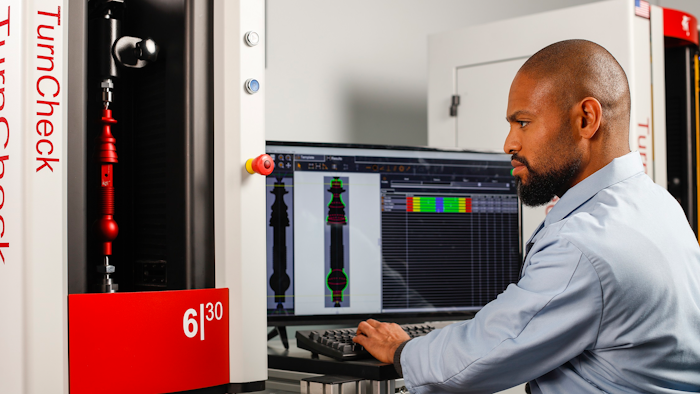

The illumination system found in TurnCheck systems produces highly collimated light with a constant wavelength, eliminating the wrap-around effect on turned parts.

Qvi

QVI (Quality Vision International; Rochester, NY) announces the newest precision optical instruments for measuring shafts and other cylindrical parts – QVI TurnCheck. QVI TurnCheck systems address the major sources of measurement uncertainty found in shaft measurement today, by focusing on advanced optics, thermal stability and ease of use. The illumination system found in TurnCheck systems produces highly collimated light with a constant wavelength, eliminating the wrap-around effect on turned parts. The receiving optics are fully telecentric with each element designed to eliminate distortion. The result is a crisp, uniformly magnified image across the entire field of view, with no edge effects or exclusion zones. Additional benefits include:

  • Accurate measurements in shop floor conditions where vibration and temperature variation are common. Careful consideration was taken in selecting materials to allow the design of TurnCheck systems to mitigate the effects of thermal variation found in shop floor environments.
  • Intuitive intelligence. There is no need to adjust lighting, focus, or image tools – the system optimizes these features automatically.
  • Simple controls, easy loading and unloading, and intelligent tools, letting the operator focus on what they want to measure, rather than how they should be measuring it, allowing for fast setup time without the need for extensive operator training.

Designed and manufactured in the United States, TurnCheck systems are offered in three different model ranges to accommodate a range of parts, up to 1200 mm in length.

www.qvii.com/TurnCheck; 585-544-0450
