Portable Monitors Measure pH, ORP, Conductivity & Oxygen in Hazardous Areas

Liquiline To Go monitors permit a technician to enter a process area, connect the monitor into any Memosens sensor, read the measured value, transfer all data into the monitor, and calibrate the sensor.

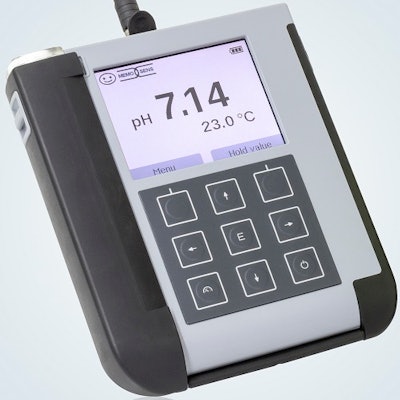

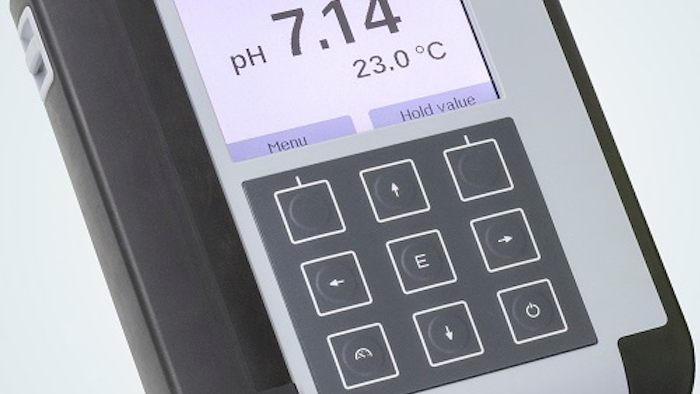

Liquiline To Go CYM290 and CYM291 portable handheld multi-parameter monitors for use with analog and digital sensors.
Liquiline To Go CYM290 and CYM291 portable handheld multi-parameter monitors for use with analog and digital sensors.
Endress+Hauser

Endress+Hauser (Greenwood , IN) releases Liquiline To Go CYM290 and CYM291 portable handheld multiparameter monitors for use with analog and digital sensors. Each device automatically detects when any Memosens sensor is connected and switches to the appropriate measured variable.

By plugging a Memosens sensor into the monitor, a technician can measure conductivity, ORP, pH, or oxygen. The battery-powered monitor also displays sensor type, serial number, zero point, slope, and date of calibration for the sensor.

Liquiline To Go monitors permit a technician to enter a process area, connect the monitor into any Memosens sensor, read the measured value, transfer all data into the monitor, and calibrate the sensor.

pH, ORP, conductivity and oxygen sensors from Endress+Hauser with Memosens technology have integrated electronics that allow for saving calibration data, total hours of operation, and operating hours under extreme measuring conditions. Once the sensor has been connected to the monitor, this data is transferred automatically to the portable monitor and used to calculate the measured value.

Because calibration data is stored in the sensor, the sensor can be calibrated and adjusted independently of the measuring point. Data transferred to the monitor can be downloaded into a maintenance management program for further analysis.

Memosens is an inductive, non-contact connection used to connect the sensor to the monitor for maximum process safety. The non-contact connection also eliminates moisture and corrosion issues, and even allows the monitor to be connected under water.

The CYM291 monitor is IECEx and ATEX certified for use in hazardous areas up to Ex Zone 0, and both models have IP66/67 ingress protection with pressure compensation.

For more information, visit www.us.endress.com, or call 888-363-7377.
