Ultra-Precise, Low Capacity Shaft Torque Sensors

Output signals for torque, speed and horsepower are provided as analog (±5 or ±10 Vdc) and digital over RS232 serial port.

S Himmelstein Sized

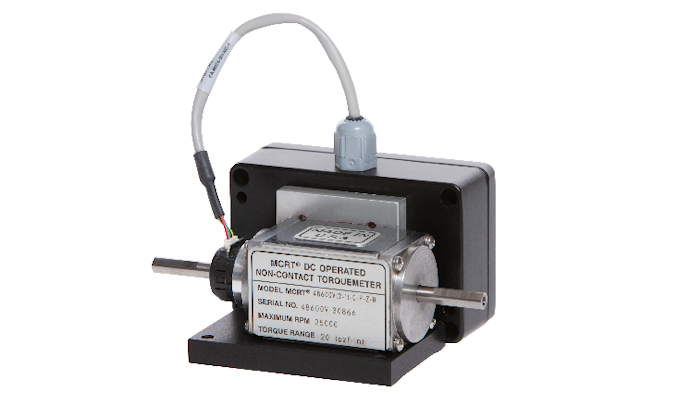

New MCRT 48600V Series Digital Torque Sensors from S. Himmelstein (Hoffman Estates, IL) offer extreme measurement accuracy with fast installed response, and high mechanical overloads and electrical overrange. Output signals for torque, speed and horsepower are provided as analog (±5 or ±10 Vdc) and digital over RS232 serial port. Available capacities are from 10 to 200 ozf-in (0.07 to 1.4 Nm). Additionally:

  • They are available in two accuracy grades: ±0.1% and ±0.05% of full scale combined non-linearity and hysteresis, and have world class temperature performance.

  • Mechanical overloads of 200%, 400%, 500%, or 1,000% offer a safety margin in the presence of high startup torques or large torsional oscillations.

  • Electrical overrange of 150% avoids clipping of real world torque peaks and driveline torsionals reducing potential for errors in the average torque measurement. Output bandwidth is 1 kHz with 13 user selectable low pass filters.

  • Included interface software allows fast PC setup and re-configuration while selecting from up to 33 units of measure, all without re-calibrating.

  • All are calibrated CW and CCW to rated load in our ISO 17025:2017, NVLAP accredited laboratory (NVLAP lab code 200487-0).

They are well suited for a broad range of applications including both performance and endurance testing of small pumps, motors, servo motors, gearboxes, actuators, etc.

 www.himmelstein.com; 800-623-7873
