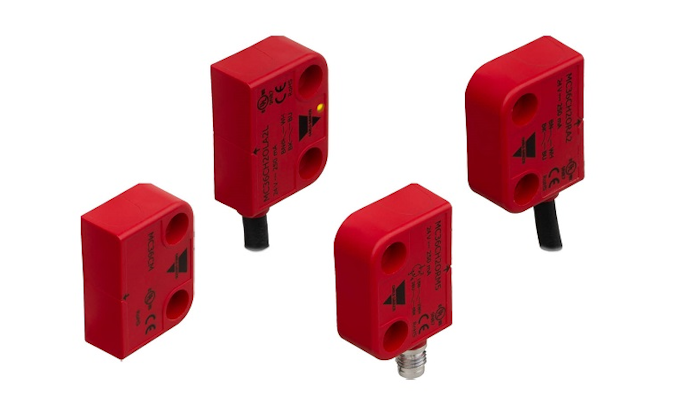

CARLO GAVAZZI (Buffalo Grove, IL) has launched the MC36C Series Compact Safety Magnetic Sensors, designed for safety-related applications, such as the monitoring of swinging, sliding or removable safety guards, which keep personnel safe from dangerous areas. The MC36C Series of magnetically-coded REED safety magnetic sensors are the ideal solution to monitor the position of sliding, hinged and removable safety guards, especially in dirty and dusty environments. The MC36C Series are extremely versatile and can work as standalone or in conjunction with a safety module to reach a safety category 4, according to the EN ISO 13849-1 Standard. Other important features include:
- Assured switching range: 5mm w/MC36CM
- Assured switch-off range: 15mm w/MC36CM
- Operating temp: -25 to +80°C (-13 to 176°F)
- Rated operating voltage: 12-24 VAC/VDC
- Rated operating current: 0.25 A (resistive)
- Maximum switching load: 6W (resistive)
- Maximum operating frequency: 100 Hz
www.carlogavazzionline.com; 847-465-6100
