Fully Redundant Mobile Angle Sensors

The measurement angle of the RSA3200 Series is factory programmable for range maximum between 60° to 360°.

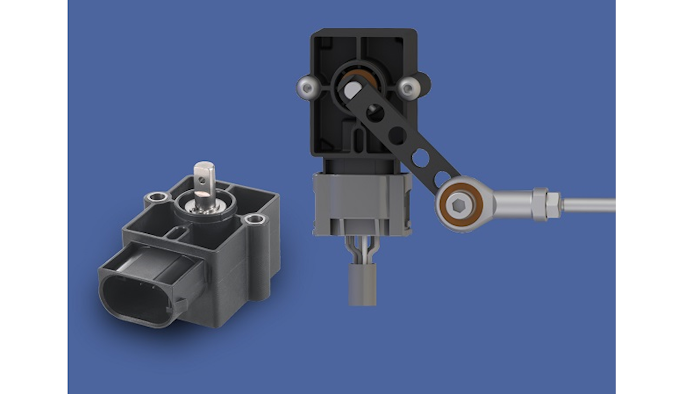

Novotechnik Sized

Novotechnik, U.S. (Southborough, MA) introduces the RSA3200 Series of Hall effect angle sensors, featuring auto-diagnostics, fully redundant versions and ultra-EMC tolerance for use in harsh environments and high reliability applications. Specifically:

  • Measurement angle of the RSA3200 Series is factory programmable for range maximum between 60° to 360°.

  • Optional linkage lever that attaches to shaft, provides additional mounting options.

  • Output versions are CANopen, SAE J1939 as well as analog: 0.25 to 4.75, 0.5 to 4.5 V and 4 to 20 mA. Resolution is 12- or 14-bit and repeatability is typically ≤ ±0.36° for CANopen output and ≤±0.1° for all other outputs.

  • Compact design, sealing to IP 67/ IP6K9K for housing and a stainless steel D-shaft also contribute to making the RSA3200 ideally suited to automotive, marine and off-highway vehicle applications.

www.novotechnik.com/rsa32; 508-485-2244
