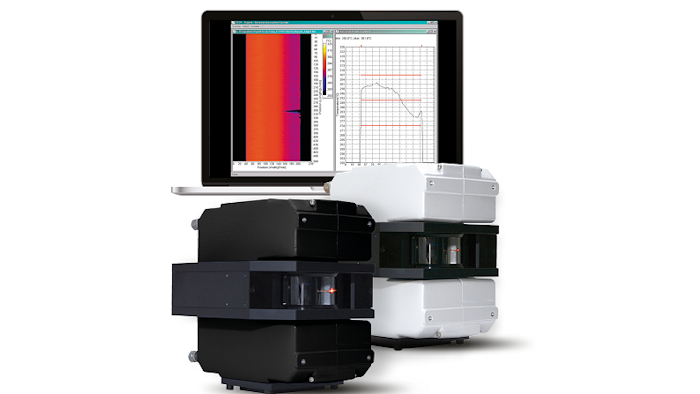

Fluke Process Instruments (Everett, WA) introduces the MP Linescanner Series, which delivers continuous, accurate, edge-to-edge thermal images and temperature measurements for high-speed manufacturing processes. The new imagers deliver real-time imaging at scans speeds up to 300 Hz and feature Fluke’s widest selection of spectral and temperature ranges to accommodate a variety of industrial applications.
The versatile MP Linescanner Series features rotating optics and a 90-degree field of view that quickly renders a 2D image on a PC. Additional key features include:
- High-quality brushless motor (MTBF 40,000 h)
- Built-in Ethernet TCP/IP communications
- PC independent 4-20 mA interfaces (3 outputs)
- I/O module support for up to 10 sectors/zones (PC independent)
- Internal Line Laser for accurate alignment
- Rugged, waterproof IP65 enclosure
- Air purge to keep the window free of dirt and condensation
- Built-in water cooling for ambient up to 180 °C (356 °F)
- PC independent alarm output
