Rotary Continuous Bulk Solids Mixer

It features a stationary inlet, a stationary outlet, a rotating drum with smooth interior surfaces and proprietary mixing flights that impart a gentle tumbling action.

Munson

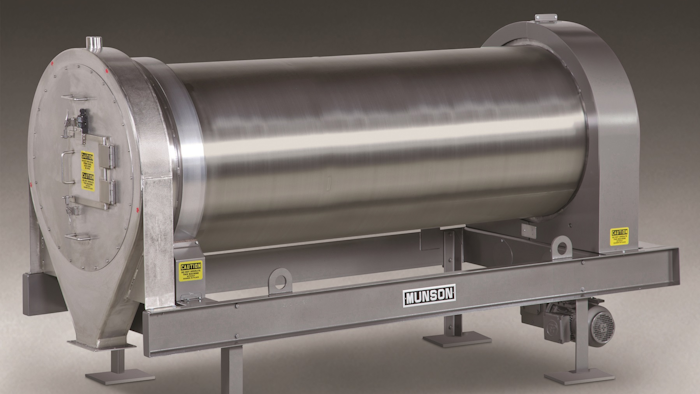

A new sanitary Model RCM36X9SS Rotary Continuous Mixer from Munson Machinery (Utica, NY) blends dry bulk solids with or without liquid additions, in-line at low cost over long production runs.Intended for dust-free mixing of bulk materials in large volumes, it blends primary bulk ingredients, minor ingredients and/or liquid additions and coatings uniformly with little or no degradation.

It features a stationary inlet, a stationary outlet, a rotating drum with smooth interior surfaces and proprietary mixing flights that impart a gentle tumbling action, distributing particles with each degree of drum rotation, imparting no shear or energy into the material. Unlike mixers with agitators that are forced through stationary material, the rotary continuous design has no internal moving parts and lower power requirements; a 3 HP (2.24 kW) electric motor rotates the drum at 8 to 10 RPM.


www.munsonmachinery.com; 800-944-6644
