Servo Motor & Drive Adds Industrial Ethernet

It automates simple axis of motion.

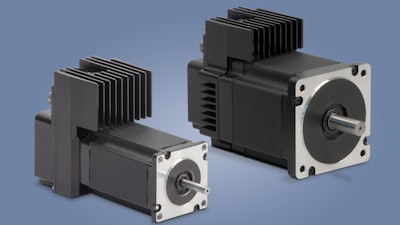

The Tolomatic ACSI integrated servo/motor/controller.

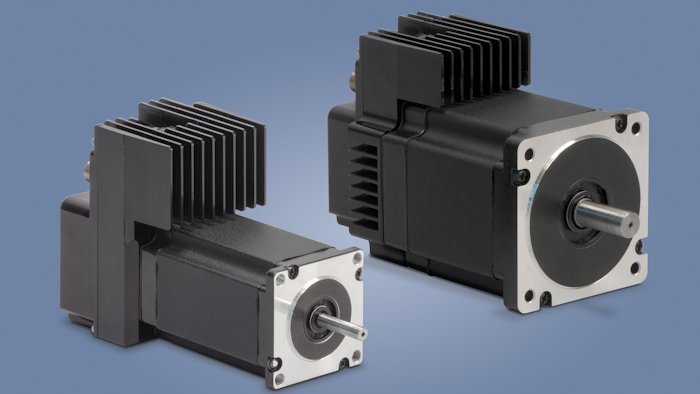

The Tolomatic ACSI integrated servo/motor/controller.

The Tolomatic (Hamel, MN) ACSI integrated servo/motor/controller is now available with PROFINET Industrial Ethernet protocol, allowing engineers to design electric actuator solutions for single-axis applications. The integrated package is suitable for replacing pneumatic cylinders and automating any simple axis of motion with Siemens or other PROFINET enabled PLCs. Additional features include:

  • Built-in configurations for Tolomatic electric actuators.
  • The ability to automatically configure the motor, actuator, safety limits and other settings inside the controller.
  • EtherNet/IP and Modbus-TCP options.
  • Certified by PI North America (PROFINET governing organization) to PROFINET v2.33 standards.
  • The ability to be implemented on RT (Real Time) networks as an I/O device.
  • Availability in NEMA 23 and 34.
  • Peak torques up to 1.35 N-m (12 in-lbs).
  • M12 connectors.
  • An IP65 rating.
  • Dual Ethernet ports with LED indicators for troubleshooting.
  • A USB microprogramming port.
  • 24 VDC digital I/O (4 in/2 out) and 0-10 VDC/4-20ma analog I/O (1 in/1 out) for distributed sensors and logic.

For more information, visit; or call 800-328-2174.
