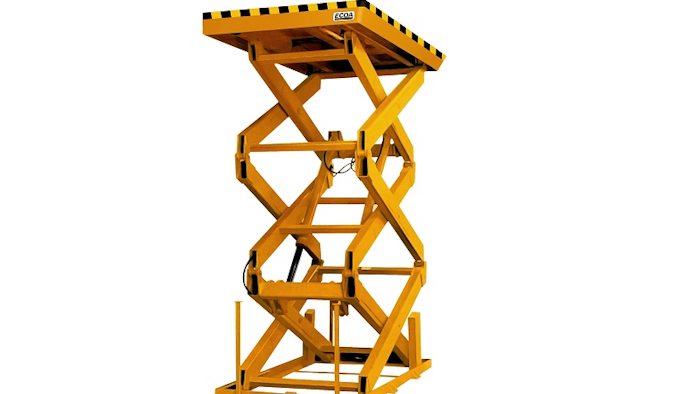

Extended Vertical Travel Lifts from Presto ECOA (Norton, MA) achieve maximum lifting heights with minimum footprint by utilizing multiple scissor mechanisms. Double, triple and quad scissor configurations are available in capacities from 2,000-6,000 lbs. with lifting heights of 70” up to 356”. Standard platform sizes range from 30” x 48” up to 84” x 144”. Features include:
- Heavy-duty structural tube scissor legs and torque tubes for maximum stability and minimum deflection.
- UL and/or CSA approved controller components.
- Hydraulic limiter valves at the base of each cylinder.
- Mechanical upper travel stops.
- Safety restraint maintenance bars.
High lifts can also be equipped with a wide variety of options including beveled edges, hand rails, safety chains, bridge plates, accordion skirting, roller shades and custom finishes to satisfy specific application requirements. Lifting and lowering is controlled by either a pushbutton pendant or foot switch.
