Custom Mold & Die Components

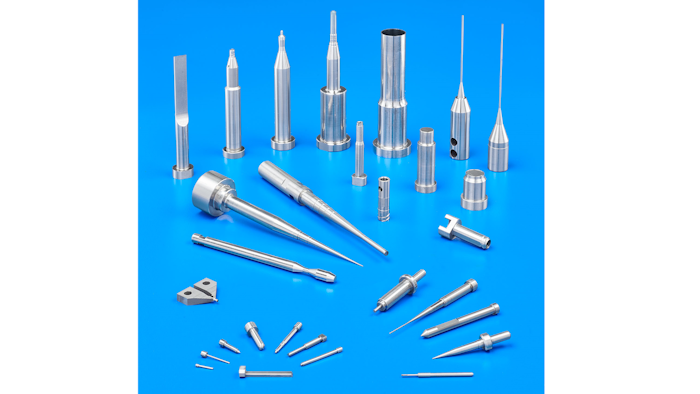

Custom core pins, sleeves, ejector pins, blades and punches fabricated in special shapes and sizes.

Custom core pins, sleeves, ejector pins, blades and punches fabricated in special shapes and sizes from Regal Components.
Custom core pins, sleeves, ejector pins, blades and punches fabricated in special shapes and sizes from Regal Components.
Regal Components

Regal Components (East Providence, RI) has introduced custom core pins, sleeves, ejector pins, blades and punches fabricated in special shapes and sizes for manufacturing medical and electronic devices. Features include:

  • Tip diameters down to 0.002”.
  • Lengths to 14” with tolerances to ±0.000050”.
  • Surface finishes to 2 RMS.
  • The ability to include tapers, rings, vents, ribs and spirals shaped using wire EDM.
  • Treatments such as draw polish, plating and coatings.
  • Tool steels including M-2, A-2, A-10, H-13, S-7, PM-M4,PM-10V, PM-15V (toughness, wear resistance); 420SS and 440SS (corrosion resistance); and beryllium-free copper alloys (optimum thermal values).

www.regalcomps.com
