J12/J16 Jig Borer Series Combines Large Capacity and High Precision

It meets the need for accuracy for machining workpieces.

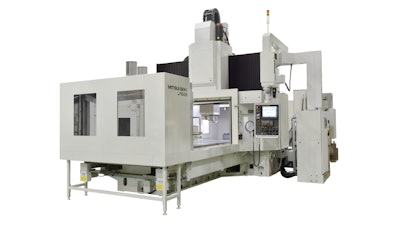

New Jig Borer J12 16
Mitsui Seiki

Mitsui Seiki USA (Franklin Lakes, NJ) announced its newest line, the J12/J/16 jig borer series, which combines large capacity and high precision to meet the increasing need for accuracy for machining workpieces such as molds and castings.

The machines offer:

  • Y-axis stroke of either 1,250 mm or 1,600 mm, with standard table sizes of 2,400 mm x 1,250 mm or 2,900 mm x 1,600 mm
  • Table lateral movement accuracy of 2.5 µm or better
  • Z-axis guide system restrained on four sides to maximize rigidity and reliability, and dual ball screws ensure stable feed motion
  • 12,000 rpm 50 taper spindle
  • Automatic tool change capacity of 60 tools

For precision holemaking applications, XY interpolation enables the J12/J16 machines to carry out high-precision contouring by utilizing an end mill. Pitch accuracy is within 5 µm even for large-pitch holes.

Additional options such as quill spindle, increased work capacity, as well as automation features are available to meet the customers’ needs.

mitsuiseiki.com
