Magmeter Comes with Two New Pipe Sizes

Additional sizes and EPDM O-rings for greater flexibility and chemical compatibility

GF Piping Systems

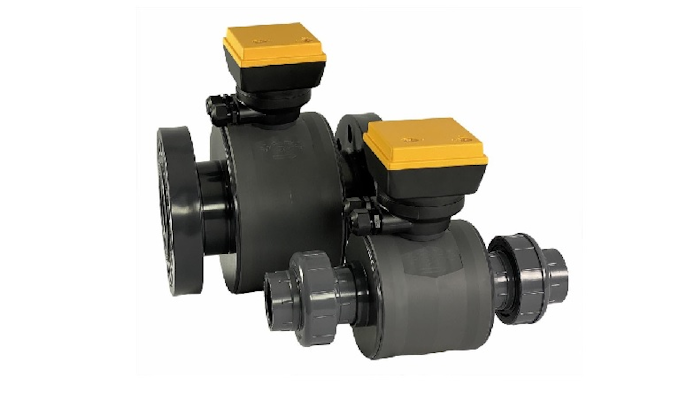

GF Piping Systems (Irvine, CA) expanded its full-bore, magnetic FlowtraMag Meter product line with two new pipe sizes in 1.5 in. and 3 in. A simplified design has been incorporated along with EPDM seals for greater chemical compatibility and application versatility.

The flow meter’s PVC body with standard Titanium and optional Hastelloy C electrodes is designed for high accuracy flow measurement in short pipe runs. High accuracy is achieved for problematic runs with a modified sensor design that has shorter inlet and outlet pipe length requirements and certified factory calibration.

The Hastelloy C electrode is ideal for expanding its chemical compatibility for other media not suited for titanium.

All thermoplastic body construction provides corrosion resistance. The unit also offers accuracy of ±1% of reading and repeatability of ±0.5%.

Streamlined monitoring and complete versatility is provided via the meter’s broad communications capabilities across multiple platforms: (S3L), Frequency and analog 4 to 20 mA (passive or active). Visual LED indicators make sensor status clear. The 2581 can connect to union ends in sizes two-inch or less and flanges for three and four-inch.

Users can configure and calibrate the 2581 to the parameters required for their system using the

GF Configuration Tool Bluetooth App. After customizing parameters for low flow cut-off and span, the 4 to 20 mA output users can monitor the 2581 on their Android or iOS device.

Applications include water treatment skids, batch processing, chemical processing and transport, fluid dispensing, water distribution, reverse osmosis, liquid delivery systems, clarified effluent, metal recovery and landfill leachate.

The 2581 features CE, UL, CUL Recognized Component and is RoHS compliant. It is manufactured under ISO 9001 for Quality, ISO 14001 for Environmental Management and OHSAS 18001 for Occupational Health and safety. It also complies with Part 15 of FCC rules.
