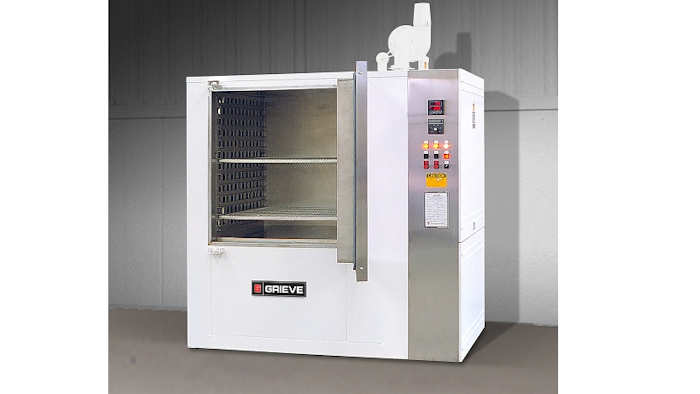

No.797 is a 260°F (127°C), clean room cabinet oven from Grieve (Round Lake, IL), currently used for drying coating on printed circuit boards at the customer’s facility. Workspace dimensions of this oven measure 36” W x 36” D x 39” H. 20 KW installed in Incoloy sheathed tubular heating elements, while a 1000 CFM, 1-1/2 HP recirculating blower provides horizontal airflow to the workload.
This Grieve clean room cabinet oven features 4” insulated walls, Type 304, 2B finish stainless steel interior with continuously backwelded seams and exterior finished with white epoxy paint. Oven features include #4 brushed stainless steel door cover and control panel face. Additional features include safety equipment for handling flammable solvent including explosion venting door hardware and 30” x 24” x 6” thick stainless steel high temperature HEPA recirculating filter.
Controls on the No. 797 include a digital indicating, programming temperature controller and SCR power controller.
