Low Profile Filler for Drums, Bulk Bags

The filler is equipped with an inflatable bag spout seal, a feed chute dust vent, and a low-profile densification deck.

Flexicon

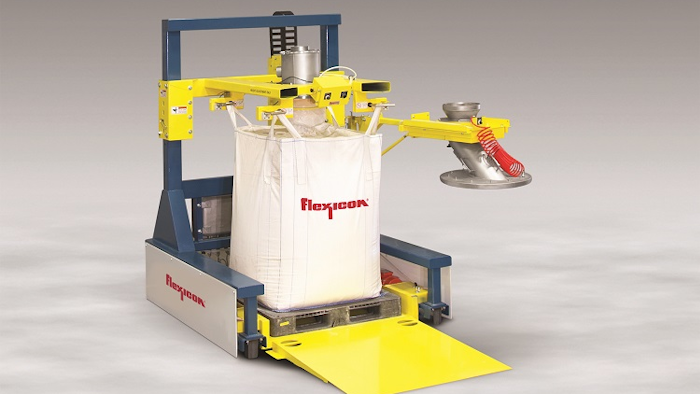

A new Low-Profile, Combination Bulk Bag/Drum Filler from Flexicon (Bethlehem, PA) allows filling of bulk bags and drums in low headroom areas. When filling bulk bags, full-length forklifting tubes integral to the rear-post fill head allow incremental height adjustments secured with hitch pins to accommodate bags of all popular sizes, from 42 to 59 in. (1067 to 1499 mm) tall, and widths to 45 in. (1143 mm). The filler is equipped with an inflatable bag spout seal, a feed chute dust vent, and a low-profile densification deck that de-aerates material in bags weighing up to 2 tons (1.8 tonnes) as they are being filled.

A remote console or wall-mounted panel houses controls to automatically inflate the bag to remove creases, open a flow control valve or start a feed device, and stop the flow of material once a preset fill weight has been gained. The vibratory deck de-aerates and densifies material in the bag at preset set points to create a solid, stable bag, ready for shipment. Once bags are filled, the controller deflates the spout connection collar and releases the loop latches, enabling the operator to remove the palletized bag using a pallet jack or fork truck.

www.flexicon.com; 888-353-9426
