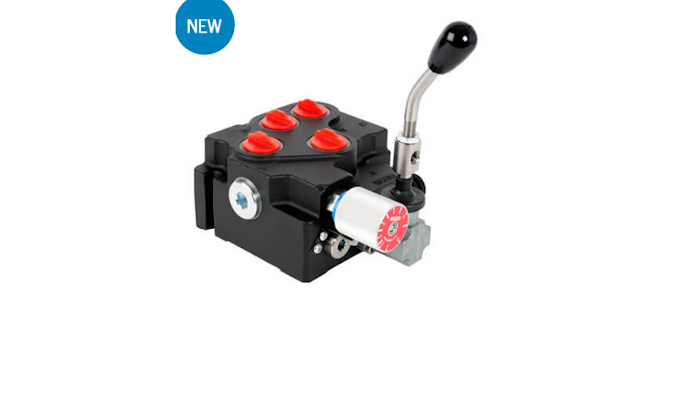

CV120 Hydraulic Combination Valve

A variable priority flow divider is combined with a directional control valve in one body.

Webtec Sized 2

The CV120 valve from Webtec (Milwaukee, WI) is a compact valve where a variable priority flow divider is combined with a directional control valve in one body. This reduces both cost and size by reducing the required number of hoses and fittings and allows for a more compact installation. Benefits include the following:

  • Maximum Operating Pressure: 3,600 psi
  • Total Flow Capacity: 32 GPM
  • Regulated Flow Capacity: 0 - 25 GPM
  • Porting:  1-1/16 UNF or 3/4” BSPP
  • Material: Steel components in cast iron body; aluminum knob
  • Weight: 19.5 lbs

A clearly marked single-turn hand dial permits fast visual adjustments to pre-determined β€˜Priority’ flow.

www.webtec.com; 800-932-8378
