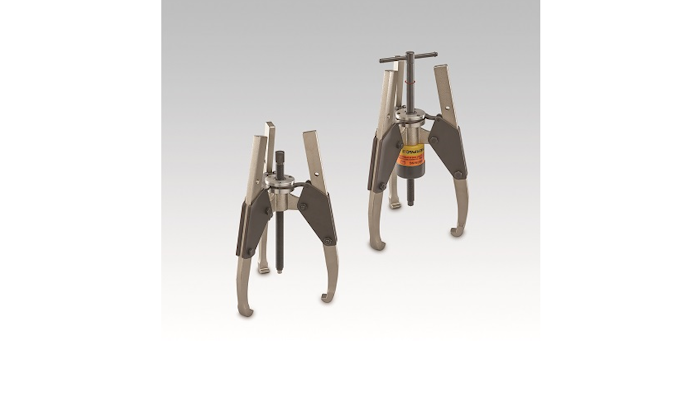

Enerpac (Menomonee Falls, WI) announces the SG-Series Sync Grip Pullers for the simple and safe removal of shaft-mounted items. The multipurpose puller range can remove items including bearings, bushings, gears, sleeves, wheels and sprockets. The pullers are available in both mechanical and hydraulic configurations, with a variety of optional accessories that expand application range and increase utility. Hydraulic models are available in standard kits which include detachable hydraulic cylinders and a choice of pump options, along with a gauge assembly and hose for safe monitoring of applied pulling forces. The sync-grip mechanism of the pullers synchronizes the movement of the jaws for simultaneous engagement. Additionally, the threaded spindle and jaw indexes provide adjustable reach, and the three-jaw configuration evens load distribution. SG-Series Sync Grip Pullers include:
- SGM-Series Mechanical Sync Grip Pullers with a capacity of 1–20 tons, maximum reach 4.1–23.6 inches, and spread range 4.3–26.8 inches.
- MPS-Series Hydraulic Sync Grip Master Puller Set with a capacity of 14–50 tons, maximum reach 12.6–27.6 inches, and spread range 3.78–38.6 inches, with 10,000 psi maximum operating pressure. The MPS set also includes a Cross Puller, Bearing Separator and Bearing Cup Puller.
- GPS-Series Hydraulic Sync Grip Puller Set with a capacity of 14–50 tons, maximum reach 12.6–27.6 inches, and spread range of 13.8–38.6 inches, with 10,000 psi maximum operating pressure.
